Open Box Unit
Description:

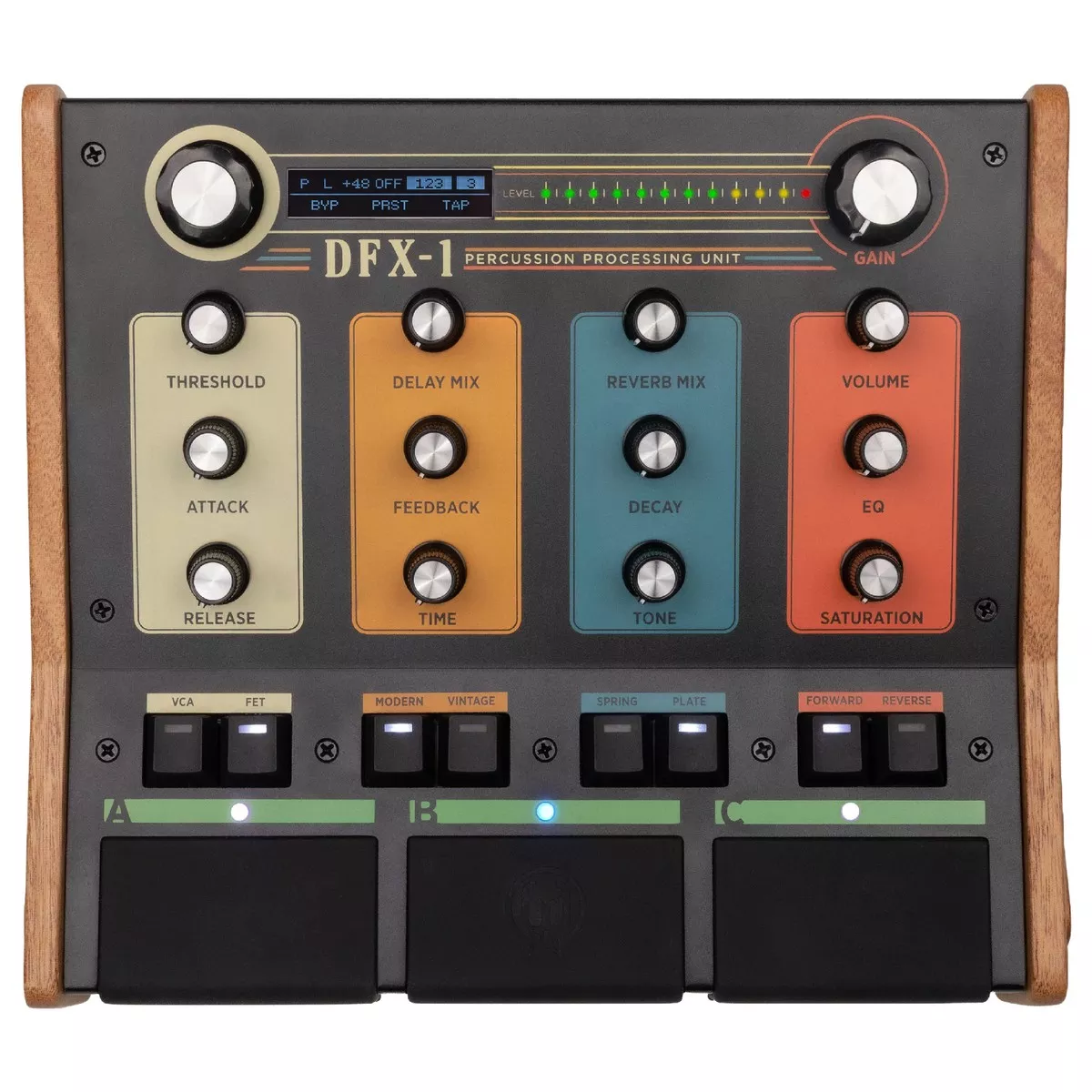

- Redefine your drum sound with the first all-in-one percussion processor. The DFX-1 combines studio-grade preamp, core effects, tone shaping, and flexible routing in one compact unit, giving your drumsand any inputmusical character and punch. Designed in collaboration with top studio drummer Aaron Sterling, it brings professional studio workflow directly to your kit.
- The DFX-1 puts studio-grade effects control directly in your hands. No extra preamps, no extra cablesjust immediate, expressive sound shaping for drums, percussion, or any instrument. Ideal for drummers, percussionists, and beatmakers looking to merge live performance with professional studio tone.
Key Features:
- Core Effects: Dual selectable flavors for each effect
- Compression: VCA or FET
- Delay: Vintage or Modern
- Reverb: Spring or Plate
- Tone Tools: Saturation, Gate, EQ for precise shaping
- Preamp Front End: Studio-grade gain, +48V phantom power, -20 dB pad
- Flexible Routing: Move FX loop anywhere in the chain and flip effect order instantly
- Performance Pads: Trigger bypass, preset selection, or tap tempo with a stick hit
- OLED Screen: Intuitive control with knobs and secondary parameters
- I/O Connectivity: Balanced XLR and I/O, MIDI In/Thru, USB-C for firmware updates, DC power input
Whats Included:
- DFX-1 Percussion Processing Unit
- Power Supply (DC)
- USB-C Cable
- Quick Start Guide
Specs:
- Power: 9v 500mA Minimum
- The DFX-1 DOES include a 6ft (1.83m), 9v, 500mA stock power supply with worldwide adapters.
- Frequency Response: 20Hz to 20kHz
- Sample Rate: 44.1kHz
- Bit Depth: 24 Bit
- Unbalanced: SNR: 98dB @ 1kHz +4dBu A-weight, THD+N: 0.0032% @ 1kHz +4dBu A-weight, Dynamic Range: 101 @ 1kHz +4dBu A-weight
- Balanced: SNR: 99dB @ 1kHz +4dBu A-weight, THD+N: 0.0025% @ 1kHz +4dBu A-weight, Dynamic Range: 102 @ 1kHz +4dBu A-weight
- Total Latency: 2.9ms
- Preamp Gain: +60dB
- XLR Input Impedance: 6.8k Ohms
- 1/4 Line Input Impedance: 24k Ohms
- 1/4 Instrument Input Impedance: 1M Ohm
- FX Loop Send Impedance: 220 Ohm
- FX Loop Return Impedance: 1M Ohm
- XLR Output Impedance: 220 Ohm
- 1/4 Output Impedance: 220 Ohm
- Note: The XLR and 1/4 Outputs are not discrete outputs; they are simply split from the same source for your preferred connection type.
Dimensions:
- Total Weight in Box: 5.7lb
- Box Dimensions: 312mm x 289mm x 115mm
- Unit Weight: 3.8lb
- Unit Dimensions(including knobs): 262mm x 232mm x 97mm
This product has been unboxed and opened. It is in near-mint condition and show virtually no signs of use. It comes with all the original accessories and packing. This is a final sale but includes the manufacturers full warranty.
