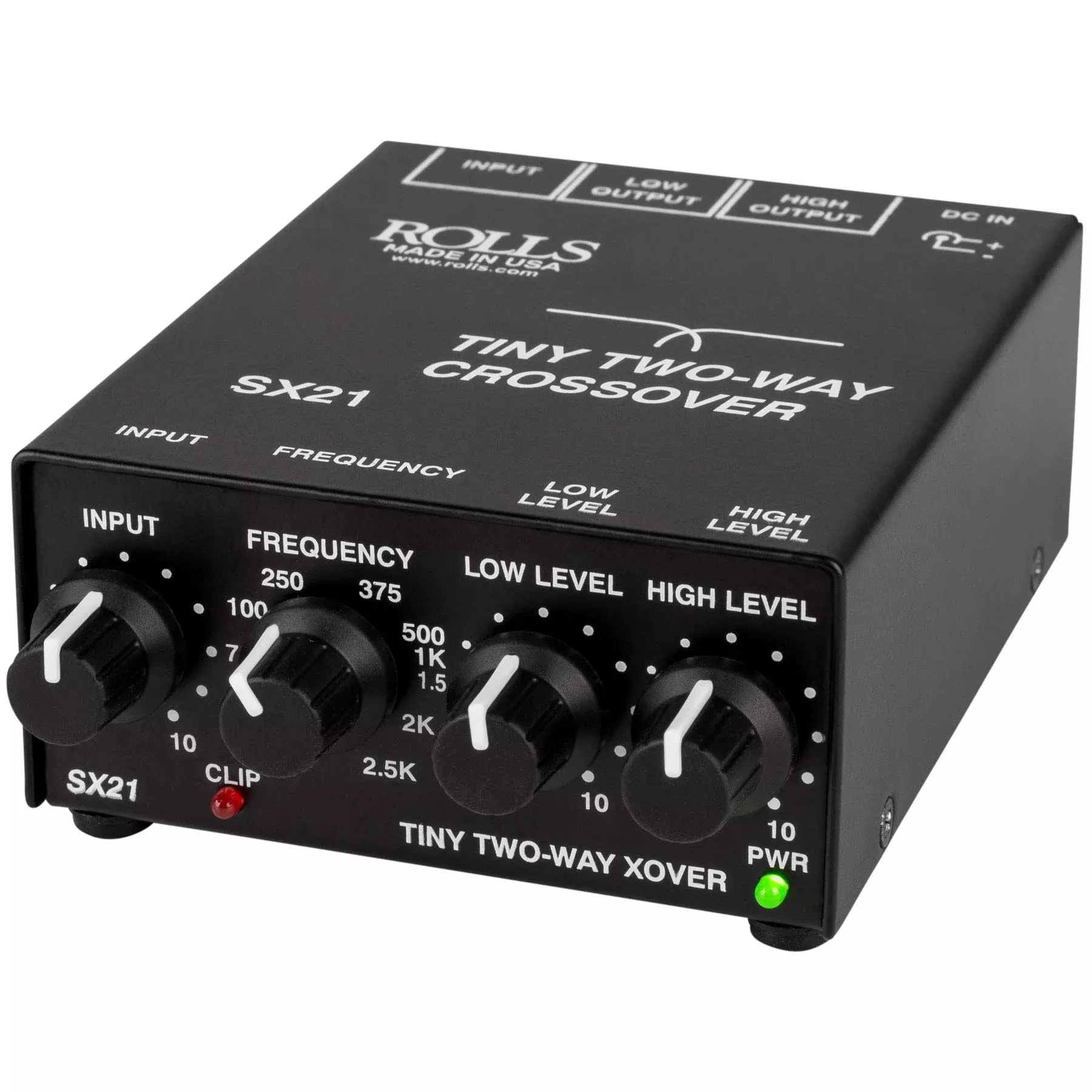

Rolls SX21 Tiny Two-Way Crossover
The SX21 is a 24dB/Octave two-way frequency crossoverintended for sound reinforcement applications. It has a 1/4” input, Low andHigh frequency 1/4” Outputs, a single variable Crossover Frequency, separateLow and High Output level controls. It is powered by an included adapter.
Key Features
- 24 dB/Octave rolloff
- Mono 2-Way crossover
- 50Hz – 2.5kHz range
- 1/4” unbalanced Input and Outputs
- External power supply for low noise operation
Technical Specifications
Input Impedance
10K Ohms
Output Impedance
1K Ohms
Headroom
+10 dBV
Power Requrements
12 – 16 VDC 150 mA (Rolls part number PS27)
Size
4.25” x 3.625” x 1.5”
Weight
1 lb.
