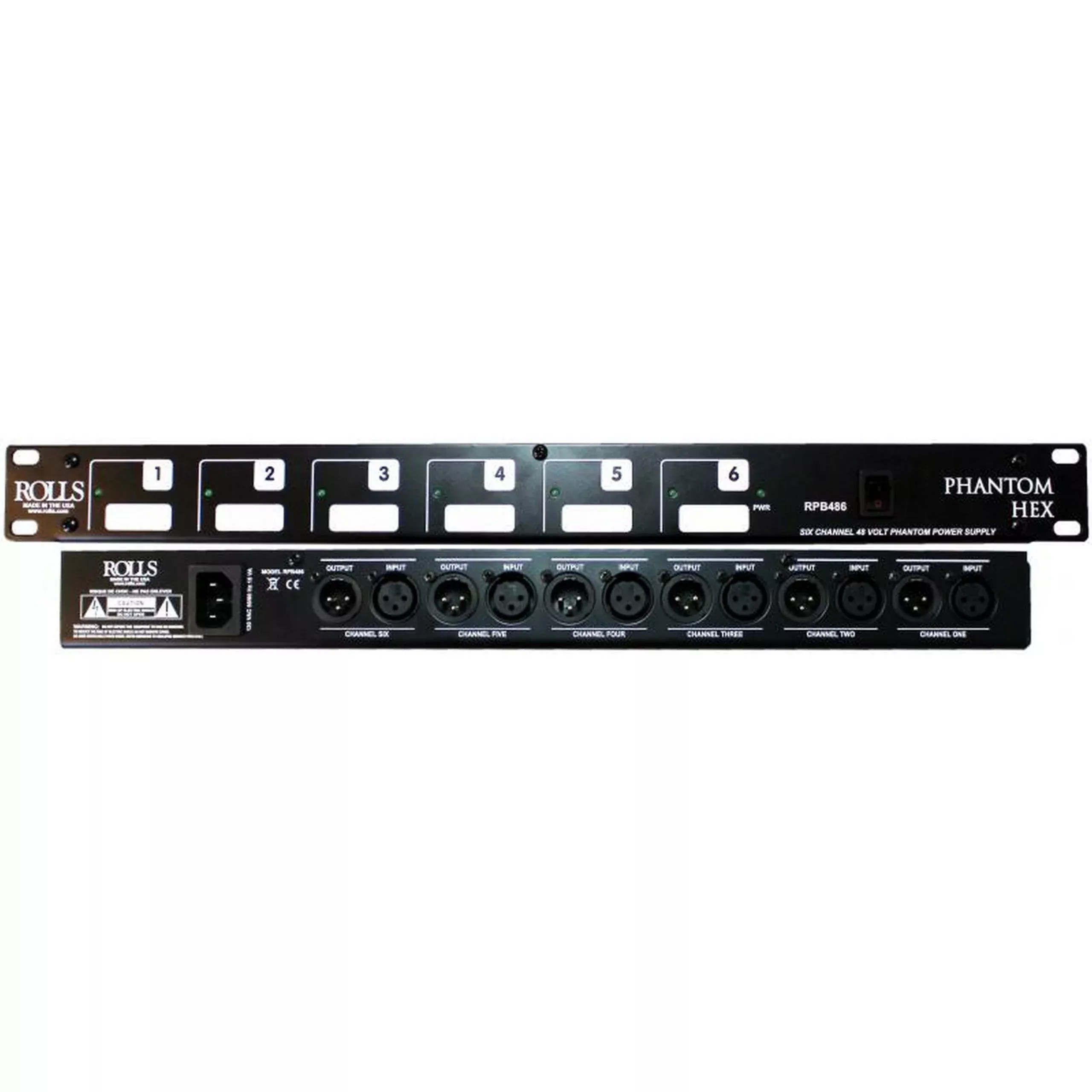

Rolls RPB486 Phantom Hex Phantom Power
The RPB486 powers up to 6 condenser microphones with 48volts of ultra clean phantom power. The outputs are XLR balanced for easyconnection to a digital multi-track recorder. To eliminate the possibility ofany DC voltages, the RPB486 features pull-down resistors and isolationcapacitors on all outputs.
Key Features
- XLR Inputs and XLR outputs
- +48 Volt Regulated Phantom Power
- LED “In Use” Indication
- Perfect for digital multitrack use
Technical Specifications
Connectors
6: XLR female jacks (pin 2 hot), 6: XLR male jacks (pin 2hot)
Phantom Power Voltage
48 Volts
Max Phantom PowerCurrent
14 mA each channel
Power Supply
Linear 120VAC 50/60Hz
Size (W x H x D)
19” x 1.75” x 2.5” (48 x 4.5 x 12.7)
Weight
4 lbs.
