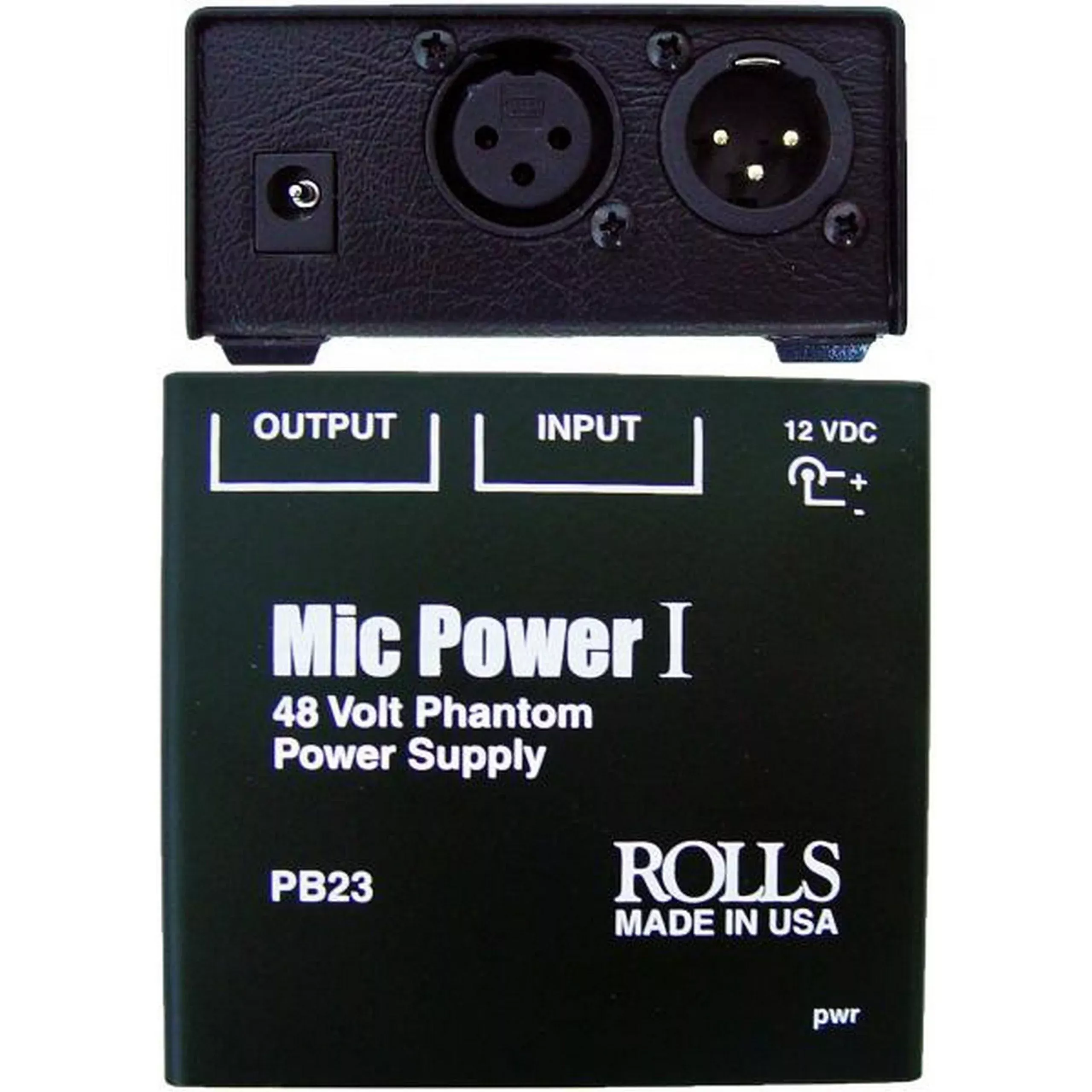

Rolls PB23 Phantom Power Adapter
The PB23 is for powering phantom powered microphones with48VDC. Since the unit uses a 100KHz switching power supply there is no audionoise generated. It has an output pull down resistors so it will work with anymixer.
Key Features
- Powers a single microphone
- Utilizes a switching regulator for stable voltageperformance
Technical Specifications
Phantom voltage
48V
Connectors
1: Male XLR, 1: Female XLR, 1: 5mm DC input jack
Power Input
12 – 18 VCD (Rolls PS27)
Size
3” x 2.5” x 1.25”
Weight
1lb (.68 Kg)
Current drain 40ma nominal one mic 15vdc
