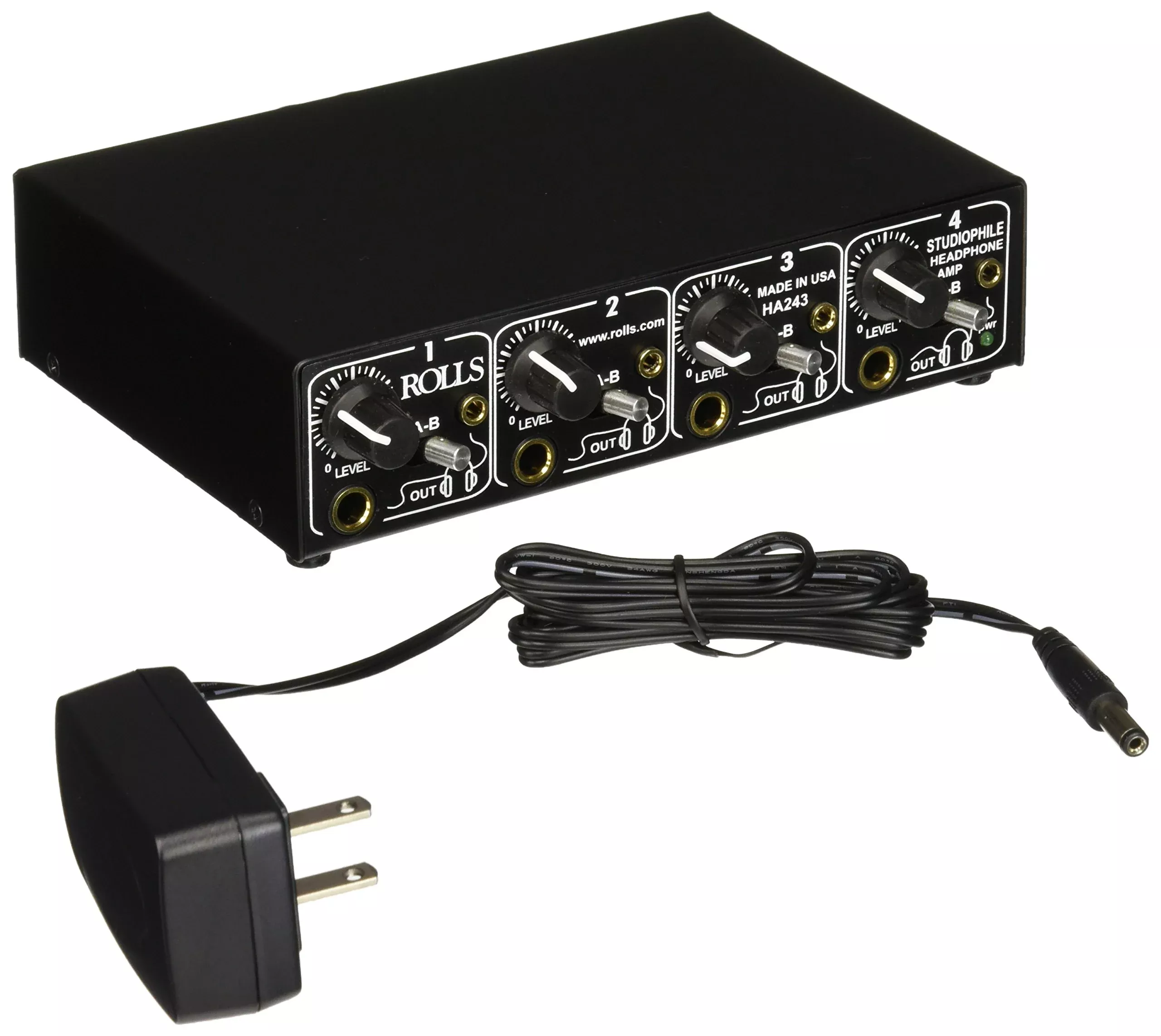

Rolls HA243 Studiophile Headphone Amplifier
The HA243 is a high powered headphone amplifier with four1/4? and 1/8? (3.5mm) headphone outs. The HA243features an A-B switch for each channel to monitor either the A or B input withthe flick of a switch!
Key Features
- 4: 1/4” TRS Headphone Outputs with Level Control.
- With the new JRC3414 I.C.’s it has plenty of gain!!!
- 1/4” , 3.5mm and RCA A and B Inputs.
- Switchable mono or stereo for both A and B inputs
Technical Specifications
Input Impedance
10 K Ohms
Maximum Input Level
+26 dBV
Max Gain
20 dB per channel
Output Power
326 mW per side, 652 mW per channel (@ 62 Ohms)
S/N Ratio
92 dB
THD
<.008%
Power
15 VDC (Adapter included)
Size
6.75 x 1.75 x 4.75”
Weight
1.65 LBS
