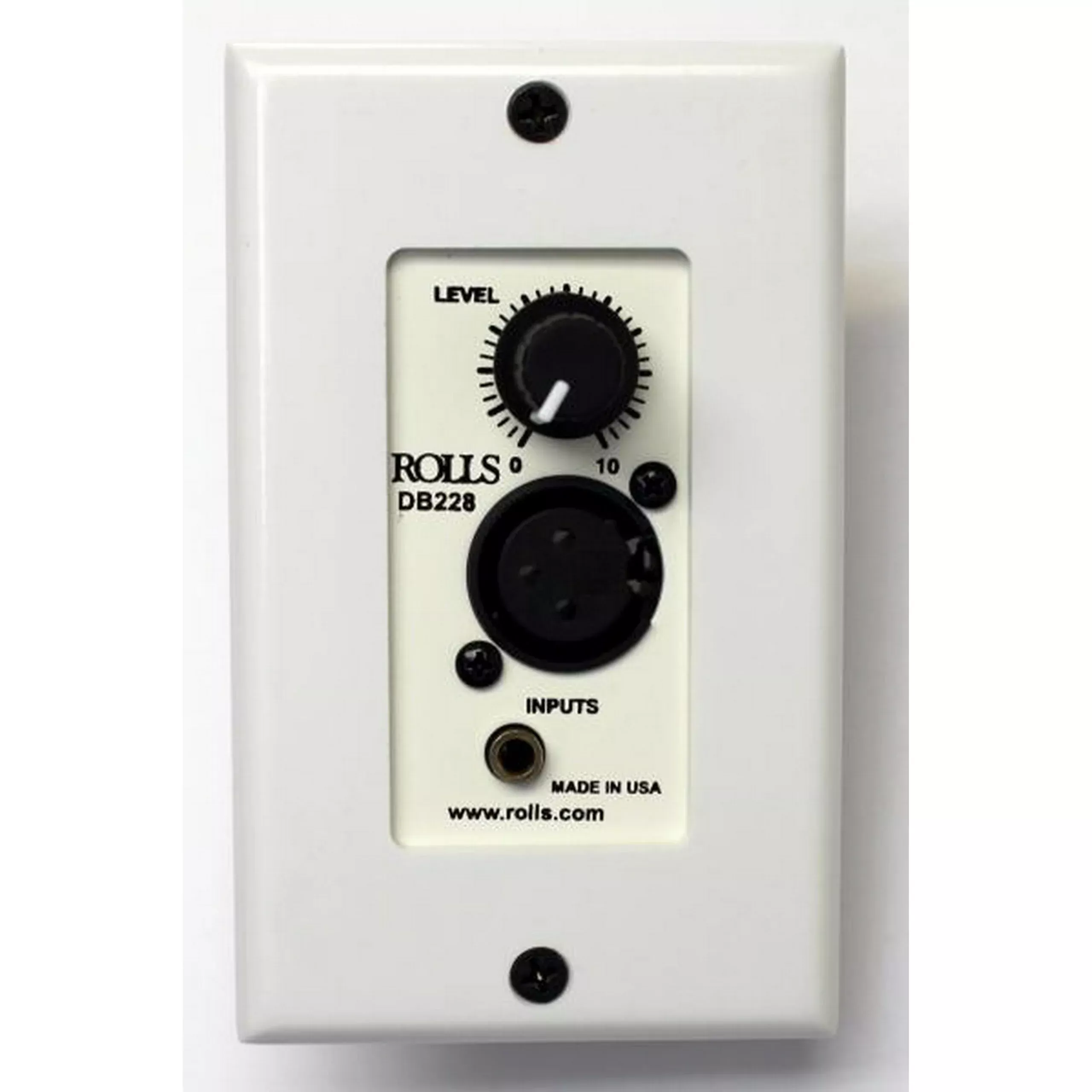

Rolls DB228 Wall Direct Interface
The DB228 Wall Direct Interface is an ideal impedancematching device for connecting any unbalanced stereo signal to a balancedsystem. Consumer audio equipment such as CD players, DVD players, MP3 players,phone, etc., may be easily connected to a professional audio system. Inaddition it will mix a microphone with a line level signal and send it out viaa plugable barrier strip connector.
Key Features
- Level Control adjusts both inputs
- 3.5mm R and L mix to Mono
- Output is a screw terminal plugable strip
- Mounting for standard electrical wall box (not included)
- Trim is for standard Decor’a wall plate (not included)
- Will pass phantom power
- Decora plastic cover in image is not included.
Technical Specifications
XLR Input Impedance
600 Ohms
3.5mm Input Impedance
20K Ohms
Frequency Response
50 – 20K Hz +/- 3 dB
Weight
.25 lbs.
Dimensions
1.5” w x 4.125” h x 1.5” d
Decora plastic cover in image is not included
