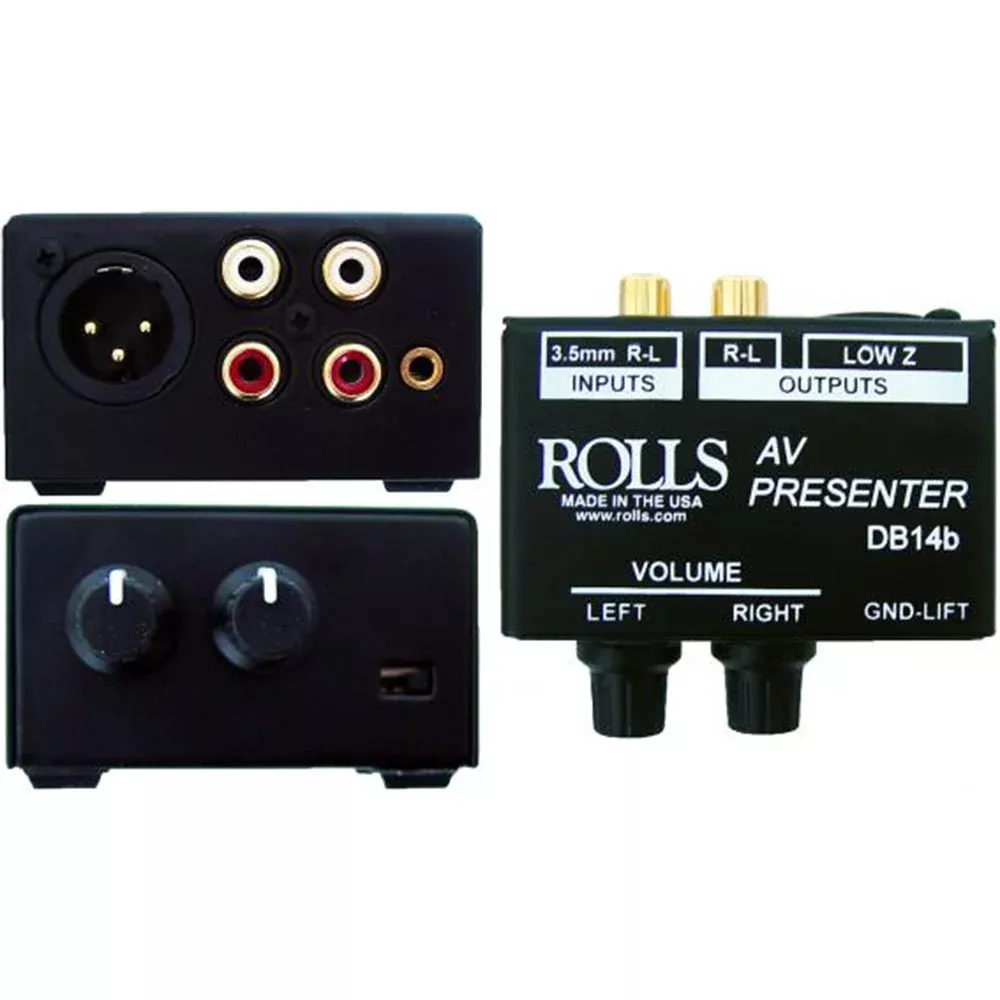

The DB14b is a special purpose direct box for applications where a stereo source signal can be separated, and individual volume controls used for each track. It provides a summed XLR output four uses such as an AV presentation from a laptop computer, or a rehearsing choir to a music track. Hum elimination is also included with the ground lift switch. It has stereo RCA and 1/8″ inputs, 2 volume controls, RCA and XLR outputs, and uses no power.
Features:
- Splits Stereo RCA and stereo 1/8″ (3.5mm) signals
- Individual Right and Left level controls
- Transformer balanced XLR mono output
- Hum elimination/ground lift switch
Right/Left In: RCA and 1/8″ input jacks. For connection to a
laptop computer, CD player, DVD player, etc.
R/L Out: RCA jacks for sending the input signals out to a line
level amplifi cation device.
Low Z Out: Male XLR jack for sending out a mix of both A
and B signals.
Right/Left Volume: Controls the level of each input signal
independently.
GND-LIFT: Ground/Lift switch for disconnecting the ground
of the XLR jack from the ground of the DB14b.
