Home » Shop » Speakers - Monitors » QSC AC-C4T-nb

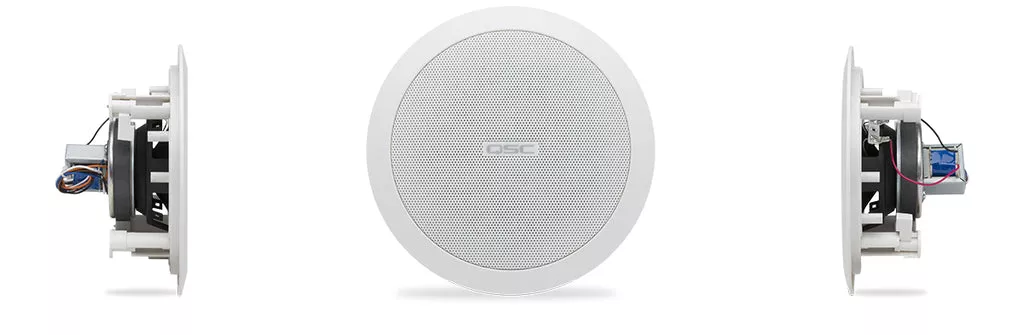

QSC AC-C4T-nb

Original price was: $46.00.Current price is: $23.01.

Sale!
SKU: AC-C4T-NB Category:
Share
4″ Full-range no backcan (non UL), ceiling speaker, 70/100v transformer, 140° conical coverage.Priced individually but must be purchased in quantities of four (4).

AC-C4T-nb

4.5-inch Full-range, 140° conical


Features

  • High quality 4.5-inch full-range transducer provides exceptional clarity through the critical voice range.
  • Low-saturation 70V/100V transformers with 8-ohm bypass.
  • 4-pole Euroblock connector for easy system wiring.
  • White (RAL 9010) with UV inhibitors to match complementing QSC product families.

Specifications AC-C4T-nb
Transducer 114 mm [4.5-inch] weather resistant paper cone
Rated noise power [rms] (1) 6 W
Nominal Impedance 8?
Transformer taps:
          70 V 6, 3, 1.5, 0.75 W
          100V 6, 3, 1.5 W
Effective frequency range (2) 62 Hz – 18 kHz
Rated Coverage(3) 140° conical
Directivity Factor 4
Directivity Index [dB] 6
Sensitivity (4) 93 dB
Maximum continuous SPL (5) 101 dB
Maximum peak SPL (5) 107 dB
Baffle material ABS
Grille material Powder coated steel
Cutout Dimensions Ø 178 mm [Ø 7-inch]
Net weight 1.2 kg [2.6 lb]
Product dimensions (Diameter x Height) Ø 206 x 95 mm [Ø 8.11 x 3.75-inch]
Shipping weight 5.9 kg [13.1 lb] (packs of 4)
Shipping dimensions (H x W x D) 254 × 324 × 476 mm [10 × 12.75 × 18.75-inch] (packs of 4)


1 AES2-1984 noise signal for 2 Hrs, 8?
2 Free-field, -10 dB from on-axis sensitivity
3 -6 dB from on-axis, 500 Hz-5 kHz
4 Free-field, on-axis, 2.83V, 1 m
5 Calculated from rated noise voltage and sensitivity
