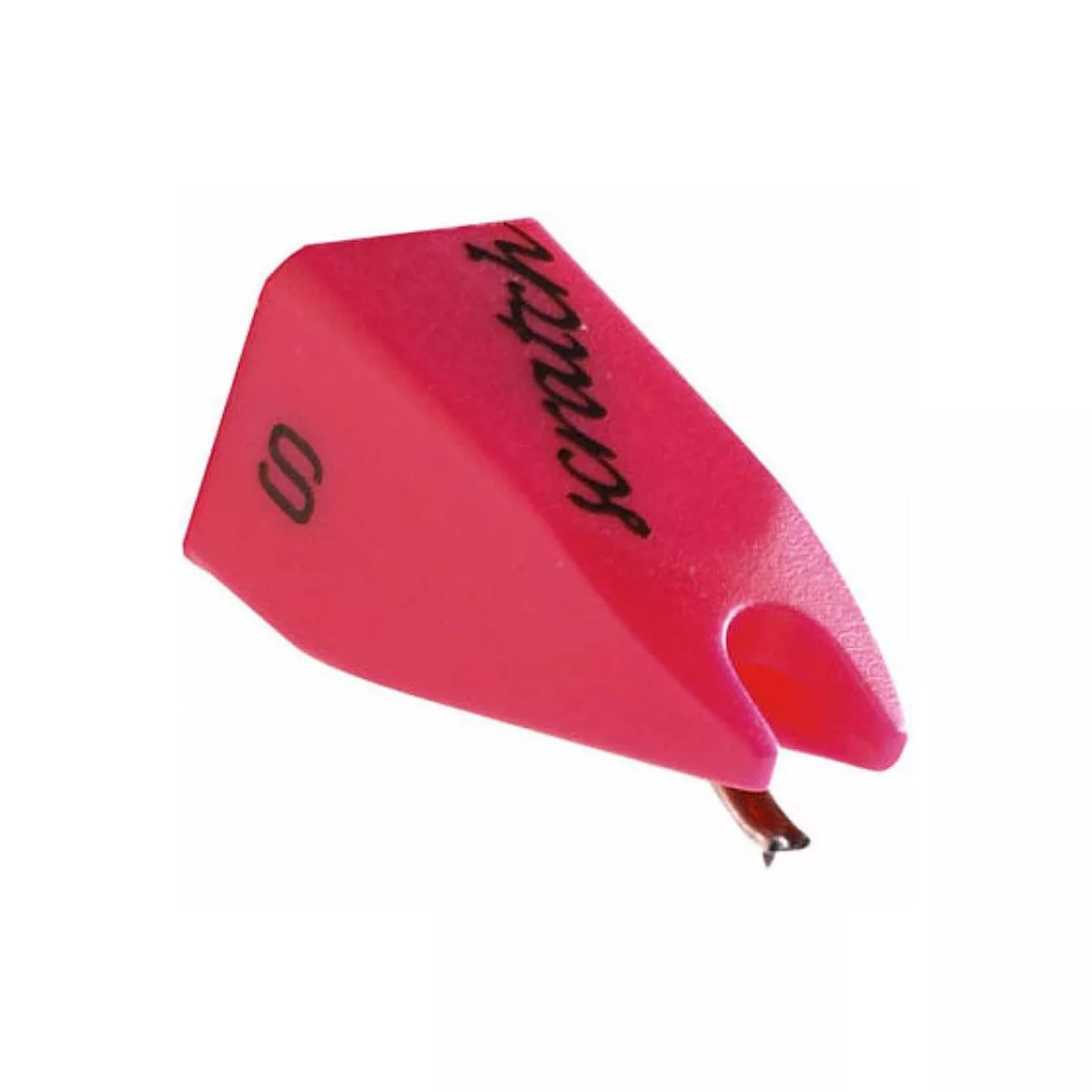

Ortofon Scratch replacement stylus
Technical data:
Output voltage at 1000Hz, 5cm/sec.: 7 mV
Channel balance at 1kHz: 1,5 dB
Channel separation at 1kHz: 25 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-20.000 Hz
Frequency response: 20-15.000 Hz +3 dB/-2 dB
Tracking ability at 315 Hz at recommmende tracking force: 80 m
Compliance, dynamic lateral: 6 m/m N
Stylus type: Spherical
Stylus tip radius: R 18 m
Tracking force range: 3,0-5,0 g (30-50 mN)
Tracking force recommended: 4,0 g (40 mN)
Tracking angle: 20
Internal impedance, DC resistance: 750 Ohm
Internal inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Cartridge weight: 5 g
Replacement stylus unit: Scratch
