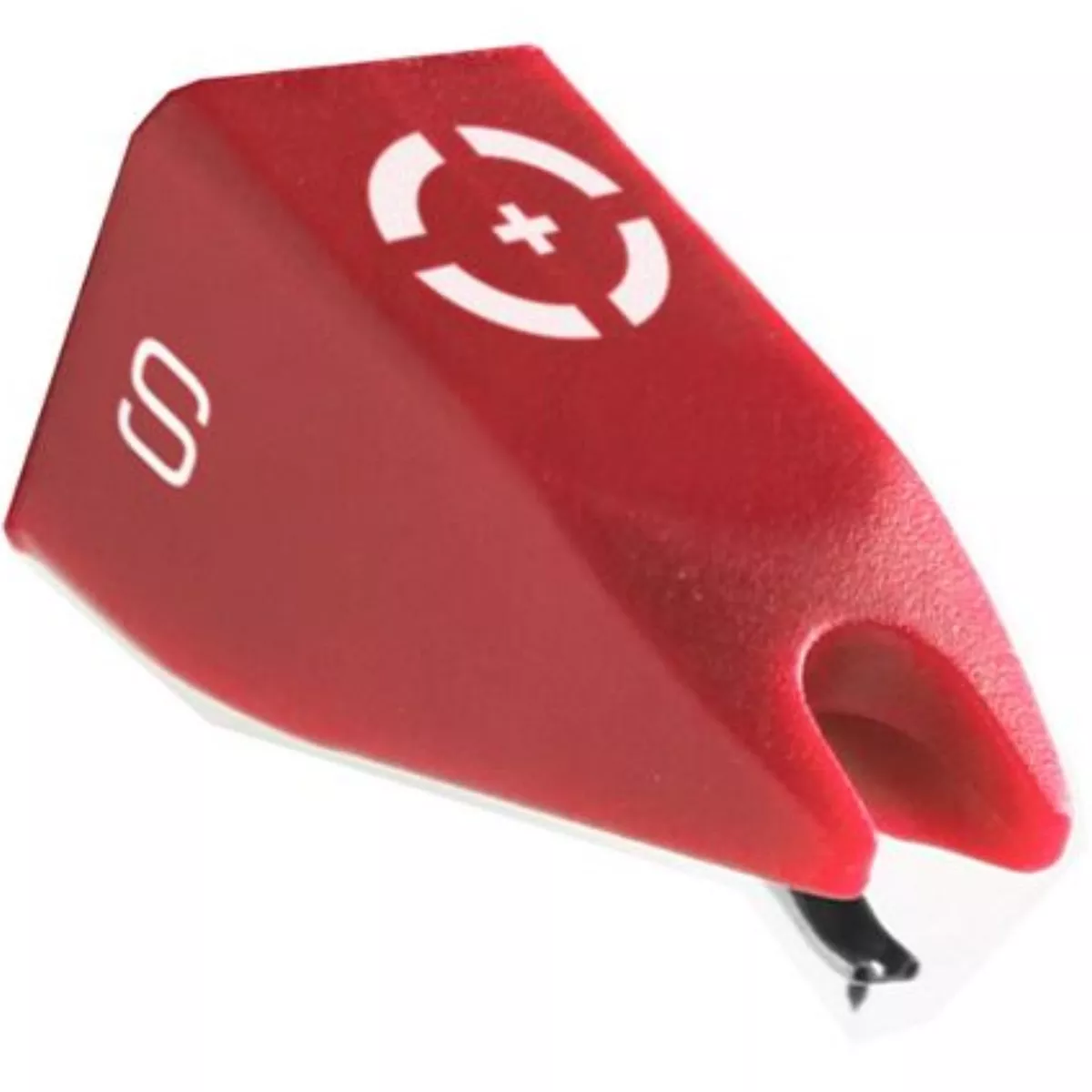

Ortofon Digitrack replacement stylus
The Ortofon Digitrack responds to the turntable DJs who make extensive use of timecoded vinyl applications.
Technical data:
Output voltage at 1000Hz, 5cm/sec.: 8 mV
Channel balance at 1kHz: 1,5 dB
Channel separation at 1kHz: 22 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-20.000 Hz
Frequency response: 20-18.000 Hz +3 dB /-2 dB
Tracking ability at 315 Hz at recommmende tracking force: 90 m
Compliance, dynamic lateral: 12 m/mN
Stylus type: Spherical
Tracking force range: 2,0-4,0 g (20-40 mN)
Tracking force recommended: 3,0 g (30 mN)
