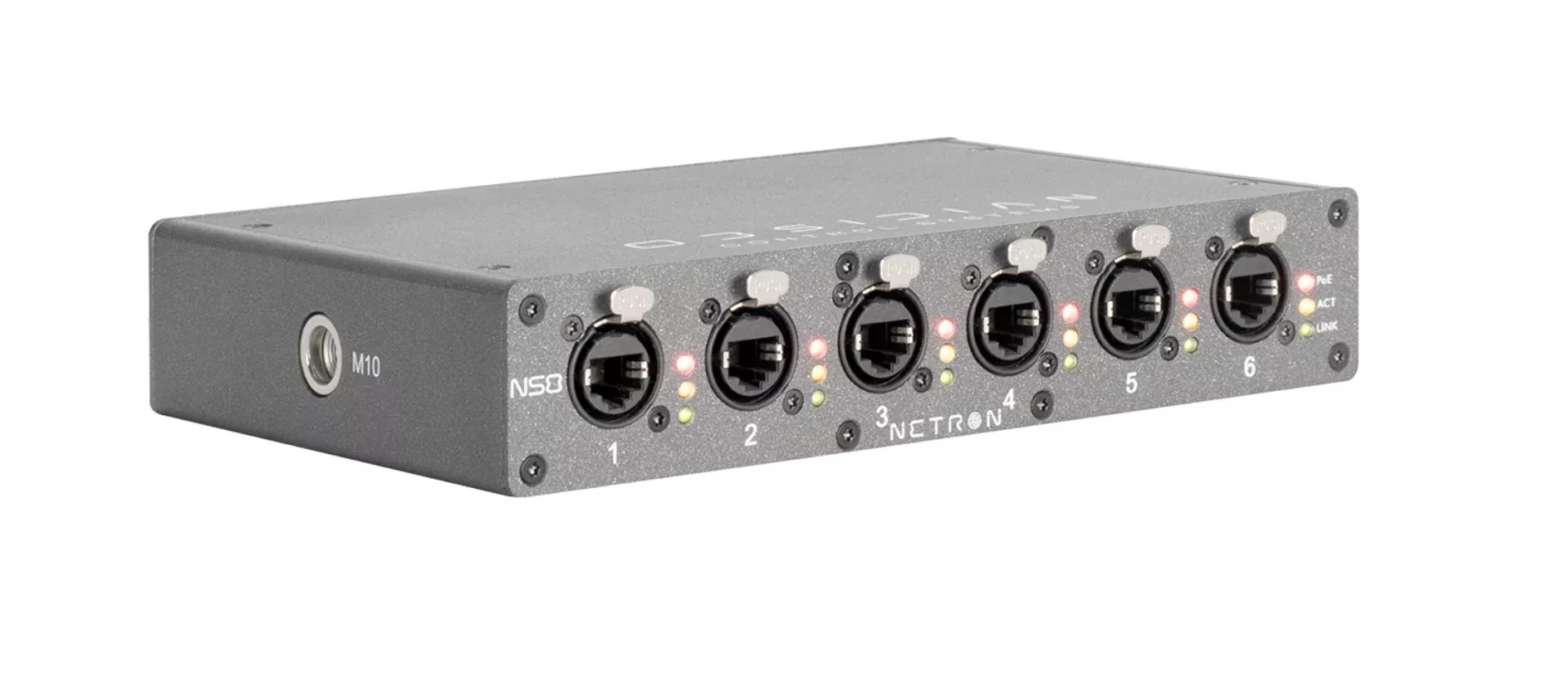

Features:
- Gigabit Network Switch optimized for data intensive entertainment applications
- Artnet and sACN support
- X-Net, HogNet, MA-Net and various other protocols
- Factory and user presets for plug and play setups
- POE+ support
- POE power switch
- Remote configuration via internal webpage
- Convection cooled design
- Powder-coated aluminum ½ rack housing
Specifications:
Mounting
Standalone
Truss-mount (M10 or M12 mounting hole)
Wall-mount horizontal or vertical (included)
DIN Rail horizontal or vertical (included)
1/2 Rack-mount option (requires NET Shelf)
Connections
Front
(6) Locking RJ45 Ethernet network connections
LED Feedback for Activity and Link
Back
Locking Power In/Thru
(2) Locking RJ45 Ethernet network connections
LED Feedback for Activity and Link
POE Power Switch
Physical
Length: 139 mm (5.5 in.)
Width: 215 mm (8.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)
Electrical
100-240 V nominal, 50/60 Hz, 130W
POE 802.3at
120W Total POE Budget
Approvals / Ratings
cETLus / CE / IP20
Included Items
1.5m Seetronic power cable (EU or US version)
(2) Wallmount plates
(2) DIN-Rail clamps
