Pure Neumann sound in the digital domain, for use with AES/EBU or AES 42. The signal is converted directly at the capsule. Difficult questions concerning the optimal preamp and A/D converter for a Neumann mic are thus a thing of the past.
Its 15 different remotely controlled directional characteristics and numerous additional features permit the D-01 to be optimally adapted to almost any recording situation. These comprehensive features demonstrate what can be achieved with digital microphone technology. The D-01 has a newly developed capsule, and is valued by users particularly for its hitherto unknown transparency and fidelity to detail.
| Extremely wide dynamic range: more than 130 dB |
| Neumann A/D conversion process |
| Pre-amps and external A/D converter are no longer necessary |
| Wide range of new functions through integrated digital signal processing |
| Control and monitoring of all microphone parameters and functions through Remote Control Software |

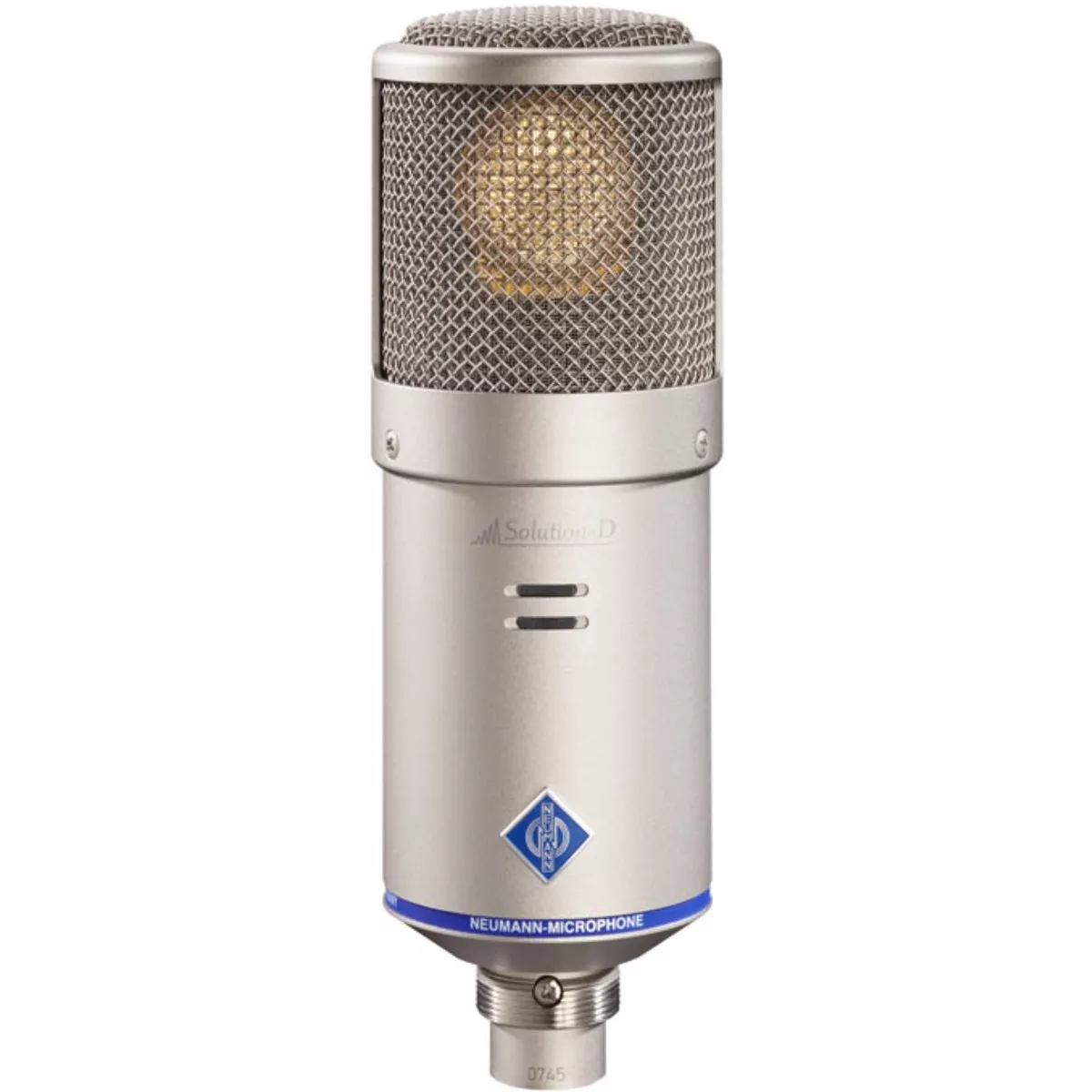

Digital Microphone
| A/D Converter, optimized for direct conversion of the capsule signal |
| New capsule design |
| Additional DSP functions |
| Limiter (incl. de-esser) |
| All parameters and functions remote controllable |
Digital Microphone Interfaces
| AES 42-2001 to AES/EBU conversion |
| Reliable synchronization through new PLL process |
| 2 or 8 channels |
| Phantom powering |
| Word clock in and out |
| Integrated word clock generator |
Remote Control Software
| Control and monitoring of all parameters |
| DSP function control |
| Peak level meter |
| Gain reduction bargraph for limiter |
| Save, copy, and recall for complete setups |
