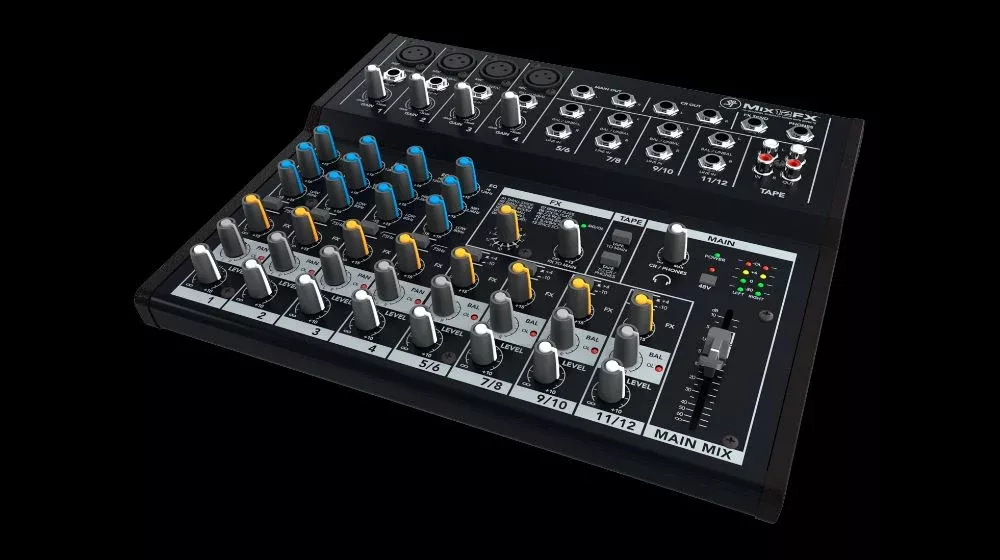

Mackie Mix12FX

Mackie is a leader in many categories, the small format mixer being among the foremost. The Mix12FX represents Mackie’s current 12-channel option in the inexpensive, low-profile mixer marketplace, and like all of their small format mixers from the past, the Mix12FX is a winner. It features Mackie’s signature “built like a tank” construction care of its rugged metal chassis, and four of Mackie’s legendary preamps. Other features include:

12-channels with proven high-headroom, low-noise performance
4 mic/line inputs with studio-level audio quality
3-band EQ with clean, precise tone shaping
Low cut filter (75Hz)
Pan, level and overload indication
Phantom power for studio condenser mics
4 stereo 1/4′ line inputs
+4/-10dB operation
Balance, level and overload indication
12 great-sounding integrated effects including reverbs, choruses and delays
Dedicated stereo RCA inputs/outputs for playback or recording
60mm fader for Main L/R outputs
Headphone and stereo control room outputs
Rugged, reliable design built to last
Extremely compact and portable

• Total: 12
• XLR: 4
• XLR/TRS combo jack: Not applicable
• 1/4″ TRS: 4
• 1/4″ TS: 8
• Aux returns: None
• RCA (stereo pair): 1
• Phantom power: Yes

Analog outputs

• Total: 8
• Main XLR: Not applicable
• Main 1/4″ TRS: Not applicable
• Main 1/4″ TS: 2
• Aux XLR: None
• Aux 1/4″ TRS: Not applicable
• RCA (stereo pair): 1
• Headphone: 1/4″ x 1

Onboard effects

• Compressors: No
• Reverb: Yes
• Delay: Yes
• Chorus/flange: Yes
• Simultaneous multi FX: Yes

Equalization

• Rotary bands per channel: 3
• Treble: Yes
• High midrange: No
• Sweep high midrange: No
• Midrange: Yes
• Sweep midrange No
• Low midrange: No
• Sweep Low midrange: No
• Low: Yes
• Parametric: No
• Master graphic EQ: No

Inserts/sends/busses

• XLR aux sends: None
• XLR group sends: None
• Inserts (channel): Not applicable
• Inserts (master): Not applicable
• Buses: 1
• Sub groups: None

Connectivity

• USB: No
• FireWire: No
• SMPTE: No
• Coaxial: No
• WiFi: No
• ADAT: No

Other

• Channel aux returns: 1
• Width: 11.7″
• Depth: 9.6″
• Height: 2.1″
• Weight: 3.7 lbs.
• Automation: No
• Channel Faders: 8
• Fader type: Rotary
• Motorized faders: No
• Bundled software: No
