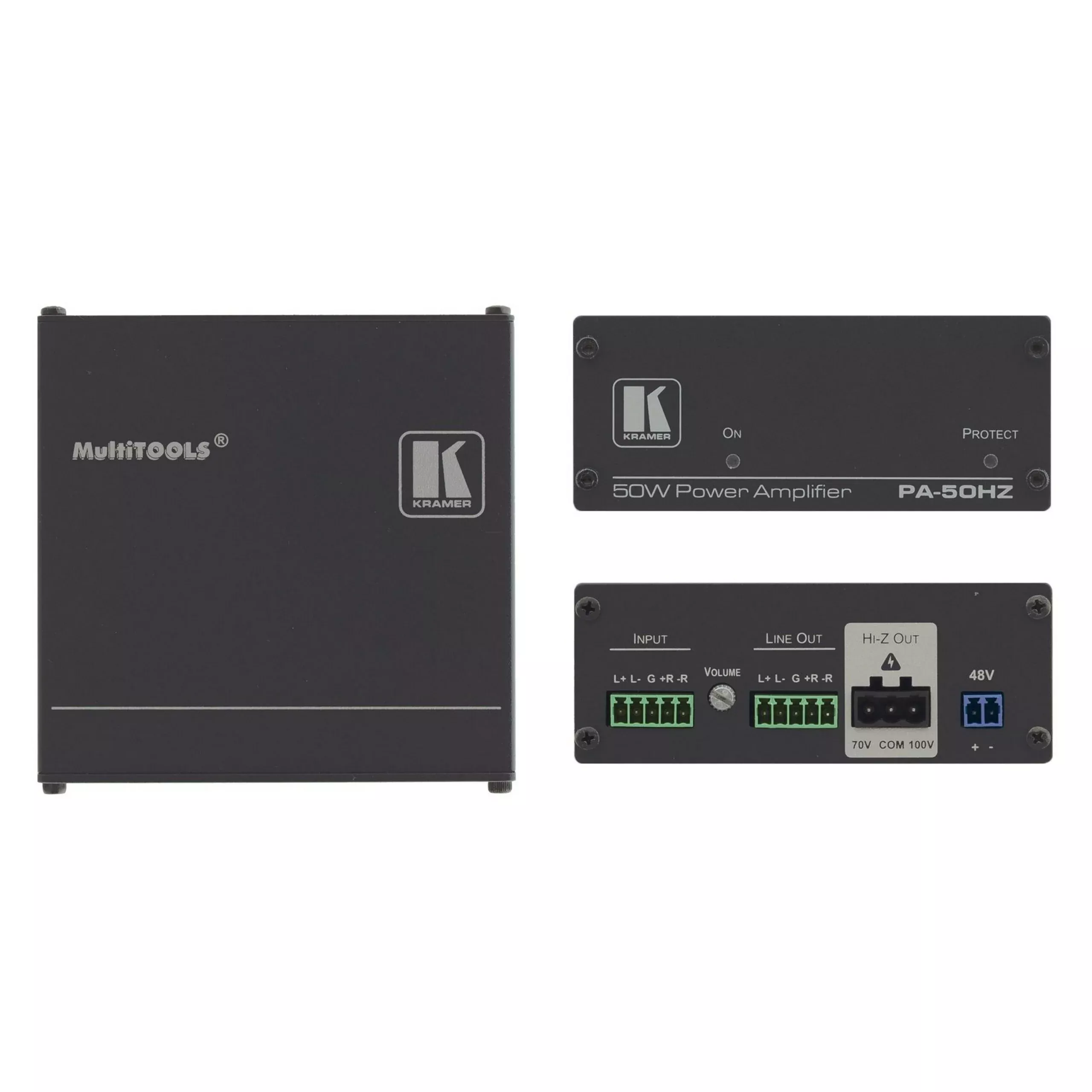

Kramer PA-50HZ 50W Power Amplifier
PA-50HZ (PA-50Z)is a compact Hi-Z (70V/100V) power amplifier with line-level output, ideal forsmall to medium-size meeting spaces and classrooms.
Key Features
- Simple andflexible speaker array installation.
- Line leveloutput for cascading, recording or conferencing scenarios.
- Small formfactor and convection cooling for simple installation.
- 50W of powerinto a 70V or 100V line.
TechnicalSpecifications
INPUTS
1 StereoBalanced Audio: On a 5-pin terminal block (up to +4dBu/10k OHM)
OUTPUTS
1 StereoBalanced Line Level: On a 5-pin terminal block connector (up to +4dBu/600 OHM)
1 MonoSpeaker: On a 3-pin large terminal block
INPUT SENSITIVITY
Full [email protected] (+5dBV)
AMPLIFIER
Class: D
OutputPower: 1 x 50W @ 70V or 100V
MaximumVoltage Gain: 37dB BTL
DynamicRange:>120dB
FrequencyResponse: Speaker output 50Hz to 20kHz @ +/-3dB
FrequencyResponse: Line level output 20Hz to 20kHz @ +/-0.3dB
S/N Ratio:90dB, 20 Hz – 20 kHz
Audio THD +Noise: Speaker output THD+N (1kHz @ 1W) 0.01 %
Audio 2ndHarmonic: 0.00006%
Controls:Screw trimmer input volume attenuator
POWER
Consumption:48V DC, 1.2A
Source: 48VDC, 1.36A
ENVIRONMENTAL CONDITIONS
OperatingTemperature: 0 to +40C (32 to 104F)
StorageTemperature: -40 to +70C (-40 to 158F)
Humidity:10% to 90%, RHL non-condensing
REGULATORY COMPLIANCE (STANDARDSCOMPLIANCE)
Safety: CE,UL
Environmental:RoHs, WEEE
ENCLOSURE
Size: 1/419” 1U
Type:Aluminum
Cooling:Convection Ventilation
ACCESSORIES
Included:Power adapter, power cord
PRODUCT DIMENSION
10.68cm x10.35cm x 4.36cm (4.20″ x 4.07″ x 1.72″ ) W, D, H
PRODUCT WEIGHT
0.8kg(1.7lbs) approx.
