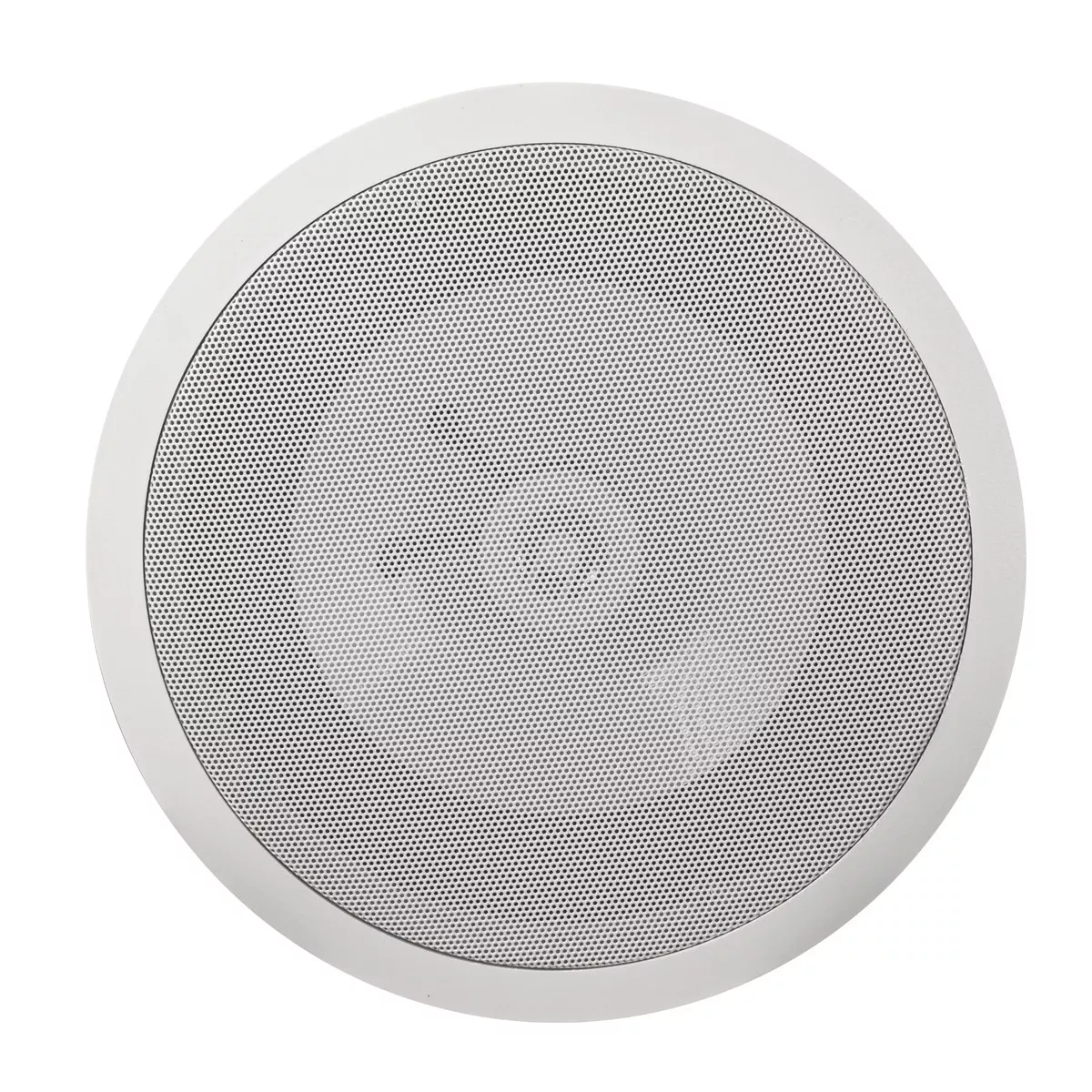

Ceiling loudspeaker without rear chamber for ceilings from 10 – 40 mm.
Integrated mounting brackets and pluggable protective grille. Equipped with 8″ woofer and 0.75″ tweeter in coaxial arrangement, for short listening distances. Integrated passive crossover and switchable 100 V transformer with five power taps (1 W/ 2 W/ 4 W/ 8 W/ 15 W). Modification of the power tapping in the installed state via switch possible. Standard finish is white, repainting possible.
Features:
- Concept: Passive 2-way ceiling-mounted loudspeaker
- Cabinet principle: Closed
- Power handling RMS: 60 W (low impedance), 15 W max. (high impedance 100 V)
- Power handling program: 120 W
- Power handling peak: 180 W
- Power tap 1 at 100 V: 15 W
- Power tap 2 at 100 V: 8 W
- Power tap 3 at 100 V: 4 W
- Power tap 4 at 100 V: 2 W
- Power tap 5 at 100 V: 1 W
- Nominal impedance: 8 Ohms (low impedance)
- Nominal impedance Power tap 1 at 100 V1: 666 Ohms
- Nominal impedance Power tap 2 at 100 V1: 1.25 kOhms
- Nominal impedance Power tap 3 at 100 V1: 2.5 kOhms
- Nominal impedance Power tap 4 at 100 V1: 5 kOhms
- Nominal impedance Power tap 5 at 100 V1: 10 kOhms
- Max. SPL peak: 113 dB
- Sensitivity 1 W/1 m4: 89 dB
- Crossover frequency: 3.0 kHz
- Frequency range -6 dB: 55 Hz – 16 kHz
- Frequency range -10 dB: 45 Hz – 20 kHz
Connections:
- Input 1 x Terminal connection
- Output/parallel output 1 x Terminal connection
