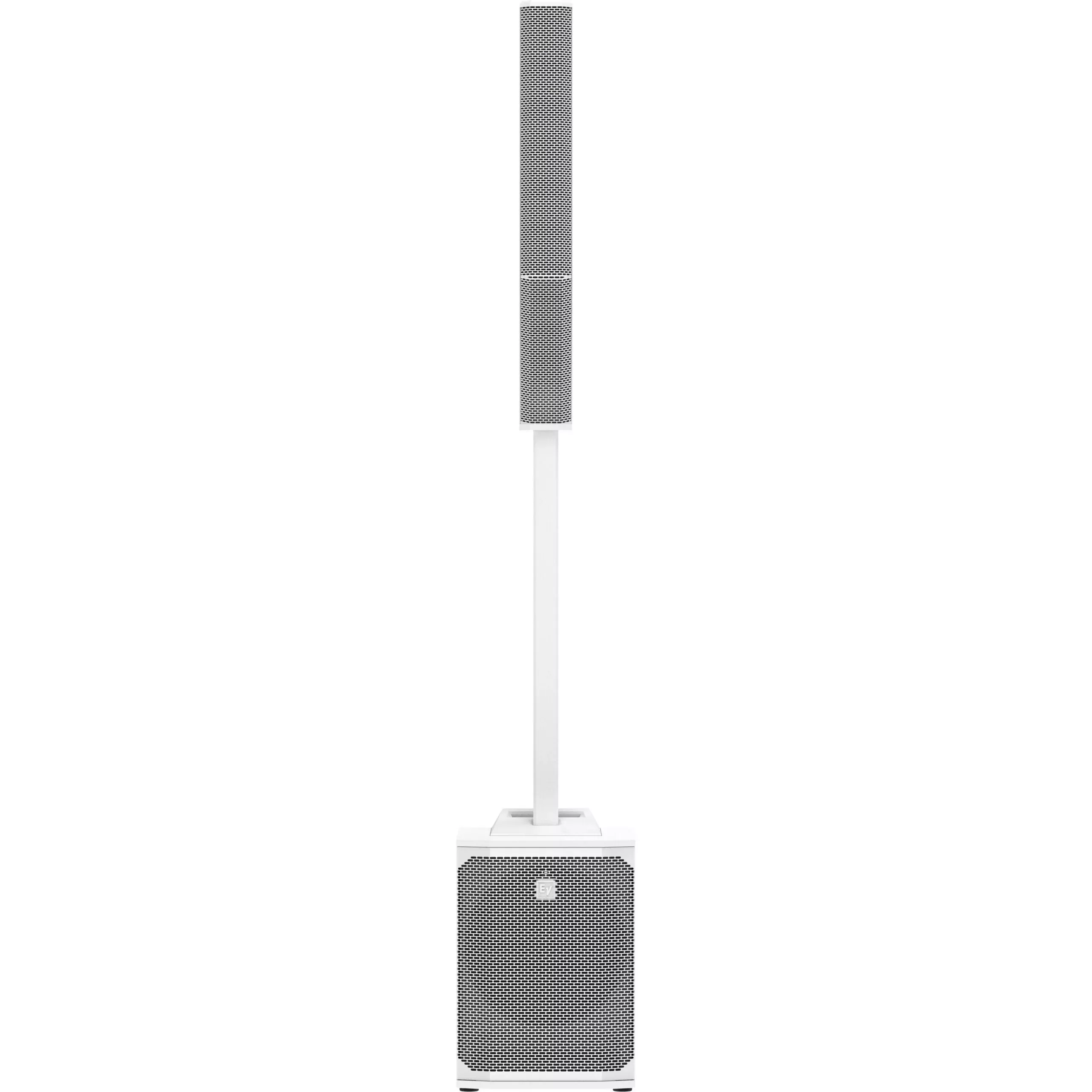

Electro-Voice EVOLVE 50M Column Loudspeaker System, White
Available inblack or white finishes, the EVOLVE 50M combines state-of-the-art industrial design,superior Electro-Voice-engineered components and premium materials to deliver best-in-classsound quality, power and reliability.
WIDE, EVEN COVERAGE
The full-rangecolumn array and its eight lightweight 3.5” neodymium drivers provide ultra-wide,full-bandwidth 120 coverage via proprietary waveguides; array-formed 40 asymmetricalvertical coverage ensures acoustic output is directed towards both sitting andstanding audience members.
MIX IT UP! INTEGRATED MIXER
Equippedwith the most comprehensive and user-friendly feature set of any column system onthe market today, the EVOLVE 50M’s “M” designation refers to its integratedfully featured, fully configurable eight-channel digital mixer. Developed incollaboration with the world-class audio electronics engineering team atElectro-Voice’s sibling brand Dynacord, the mixer has multiple inputs withprofessional-grade preamps and mix functions. High-resolution, lowlatency Bluetoothstreaming ensures excellent results for music playback or accompaniment. Independentchannel aux sends and a foot switch input are also included, and a range of effects(30 presets, including chorus, delay, flange and reverb, via two FX channels)add a myriad of options for musicians to fine-tune their tone. All of the abovehelp to reduce load-in/ out and setup/teardown time – and on-stage clutter – byminimizing the need for external equipment such as a mixer and effects pedals.
EASILY EXPAND YOUR PA
New fromElectro-Voice, QuickSmart Link makes it easy to combine two EVOLVE 50Ms for usetogether with larger bands or gigs needing more inputs. Simply link the systemstogether via an Ethernet cable to create an uncompressed digital audio/controlconnection, pair both systems to a single mobile device via the QuickSmartMobile app (available via the Apple App Store and on Google Play), and get fullmix control of both systems. For applications requiring fewer inputs, but stillrequiring a mixer and stereo output, the EVOLVE 50M can be matched with an EVOLVE50 via the MIX OUT XLR connector.
WIRELESS CONTROL & MONITORING
Use theElectro-Voice QuickSmart Mobile app to adjust all audio, effects and mixfunctions
via yourphone or tablet.
TechnicalSpecifications
Column array
8x 3.5”neodymium drivers
Subwoofer
1x 12”
Frequency response (-3 dB)
43 Hz – 20KHz
Frequency range (-10 dB)
37 Hz – 20KHz
Maximum SPL
127 dB
Coverage (H x V)
120 x 40
Amplifier rating
1000 W
LF channel rating
500 W
HF channel rating
500 W
Crossover frequency
200 Hz
Connectors
4x XLR/TRScombo jack line/mic input
2x XLR/TRScombo jack for stereo line input
1x 1/4” TRSHi-Z input
1x stereoRCA input
1x 3.5 mmstereo input
1x wirelessstereo Bluetooth audio input
1x 1/4” footswitch input
1x XLR mixout output
1x XLR auxout output
1x RJ45QuickSmart Link connector
Enclosure
Column: composite
Pole: aluminum
Sub: 15 mmplywood
Grille
Steel withblack or white powder coat
Dimensions (HxWxD) in (mm)
Column: 32.5x 4.0 x 6.9 (825 x 102 x 172)
Pole: 36.6 x1.9 x 2.2 (929 x 48.5 x 55)
Sub: 20.9 x13.6 x 18.5 (530 x 345 x 471)
Assembled: 80.5x 13.6 x 18.5 (2045 x 345 x 471)
Net weight lbs (kg)
Column: 10.34(4.7)
Pole: 2.75(1.25)
Sub: 44.66(20.3)
Total: 57.75(26.25)
Power consumption
100-240 VAC, 50-60 Hz, 1.5-0.6 A
