Home » Shop » Pro Audio » Electro-Voice EV TX1152FM

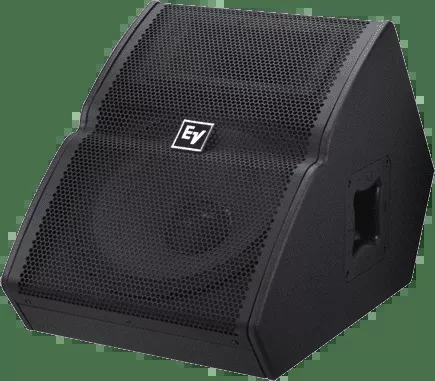

Electro-Voice EV TX1152FM

Original price was: $599.40.Current price is: $428.71.

Sale!
SKU: TX1152FM Category:
Share


TX1152FM

15″ Passive Floor Monitor

  • Two-way, high-output design
  • Vented LF enclosure
  • Neutrik Speakon® paralleled pass-through connectors
  • Two integrated handles
  • Ideal for small-to-medium stages
  • Signal Synchronized Transducers™ for woofer/tweeter alignment
  • Ultra low-distortion SMX2151 woofer with fully symmetric drive
  • 1.25-inch DH3/2010A titanium HF compression driver
  • Constant-directivity 90º H x 50º V horn
  • Integrated 24 dB/octave crossover with HF protection
  • 100 dB sensitivity, 133 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Black EVCoat™ finish

Our Tour-X floor monitors are designed to complement all full-range cabinets in the family with common voicing.

Frequency Range (-10 dB) 45 – 20000kHz
Weight Net 51.81lbs (23.5kg)
Depth 25.79″ (655mm)


Width 17.28″ (439mm)
Height 18.7″ (475mm)
Available Color Black
Coverage (Nominal -6 dB) H 90°
Coverage (Nominal -6 dB) V 50°
Crossover Frequency 1750Hz
Enclosure Material Plywood and MDF with EVCOAT
Family Tour X
Flying No
Frequency Response (-3 dB) 65 – 20000Hz
HF Transducer DH3
Input Connections Parallel Neutrik® NL4
Internal Crossover Yes
LF Transducer SMX2151
Max. SPL/1m (calc) 133dB
Minimum Impedance 6.2?
Nominal Impedance (Passive) 8?
Power Rating 2000W
Powered or Passive Passive
Recommended High-Pass Frequency 45Hz
Rotatable Horn No
Sensitivity 1 W/1 m 100dB
Speaker Type Monitor
System Power Handling (Continuous/Program/Peak) 500Watts
Woofer Size 15inch
