Home » Shop » Pro Audio » Electro-Voice EV SX300E

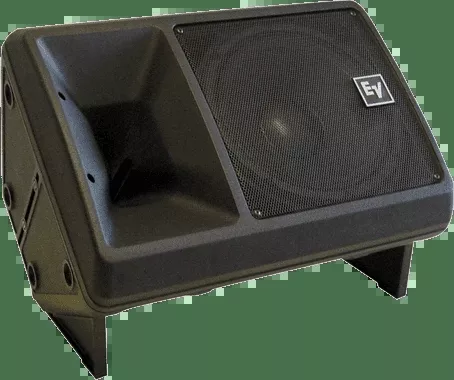

Electro-Voice EV SX300E

Original price was: $617.40.Current price is: $432.37.

Sale!
SKU: SX300E Category:
Share


Sx300E

12″ Passive Loudspeaker

  • Compact, portable sound reinforcement
  • Designed for use alone or in arrays
  • Cast-frame DL12BFH woofer
  • 1.25-inch DH3/2010A titanium HF compression driver
  • 65º x 65º Constant-directivity Varipath™ horn
  • Ring-Mode Decoupling (RMD™) for increased intelligibility
  • Power handling: 300 W continuous, 1200 W peak
  • Dual Neutrik Speakon(R) high-current connectors
  • Trapezoidal black or white polypropylene enclosure
  • Rubber feet and mating sockets for stacking
  • Integral handles, pole mount

Frequency Range (-10 dB) 50 – 20000kHz
Weight Net 39.02lbs (17.7kg)
Depth 12.28″ (312mm)


Width 16.89″ (429mm)
Height 23.07″ (586mm)
Available Color Black or white
Axial Sensitivity (SPL, 1 W @ 1 m) 99dB
Chassis Size 304.8 mm
Coverage (Nominal -6 dB) H 65° (Const.-dir. horn)
Coverage (Nominal -6 dB) V 65° (Const.-dir. horn)
Crossover Frequency 1500Hz
Directivity Index 11.1dB (+2.4/-4.1 dB)
Enclosure Material Copolymer Composite
Family Sx
Flying Yes
HF Transducer 1.25-inch DH3/2010A
Input Connections 2 four-pin Speakon
Internal Crossover Yes
LF Transducer 12-inch DL12BFH
Max. SPL/1m (calc) 131/123dB (Low Z/100V)
Minimum Impedance 5?
Nominal Impedance (Passive) 8?
Powered or Passive Passive
Sensitivity 1 W/1 m 99dB
Speaker Type Full-Range, Mid-High, Two-Way
System Power Handling (Continuous/Program/Peak) 300/1200Watts (Long-Term/Short-Term)
Weatherized No
Woofer Size 12inch
