Home » Shop » Lighting » Elation Lighting NOVA PRO HD

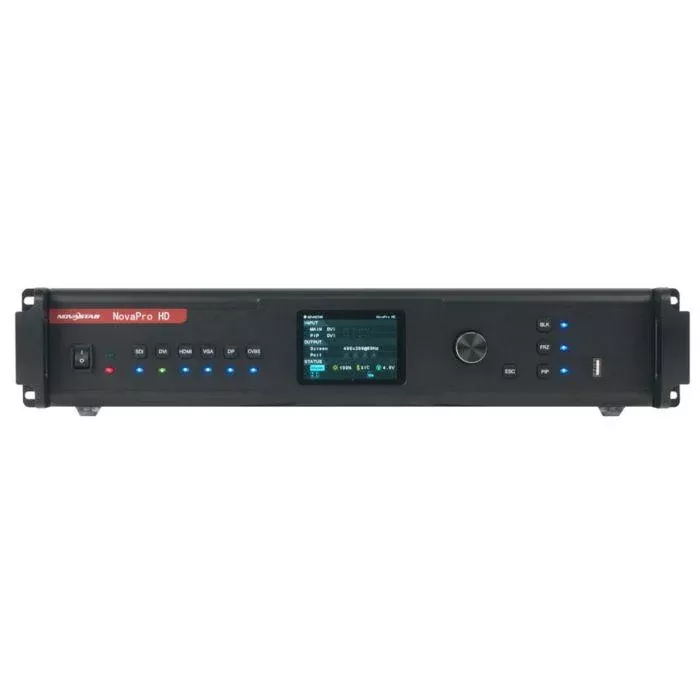

Elation Lighting NOVA PRO HD

Original price was: $3,465.00.Current price is: $2,471.08.

Sale!
SKU: NOV001 Category:
Share

The new NOVAPRO HD™ is an advanced high performance LED display controller, video processor, and configuration device that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / 3G-SDI, up to 1080p @60Hz input resolution, 165MHz pixel clock and 4G-Bit output bandwidths. NOVAPRO HD is compatible with all of Elation’s current video products.


Features

No Computer or External Scaler Needed (standard rectangular layouts only)
Up to 1080p @60Hz Input Resolution
165Mhz Pixel Clock / 4G-Bit Output Bandwidth
Multiple Video Signal Format Support
Cascade Multiple Units Together
Rack Mountable Aluminum Enclosure (screws not included)


Specifications

CONTROL / CONNECTIONS
(1) Input and (4) Output RJ45 EtherCON Ports
USB, 5pin DMX, and GenLock In/Out Ports
Audio Input: 1/8 inch connector
Video Input: DP / HDMI / VGA / DVI / CVBS / 3G-SDI
Locking IEC Power Input

SIZE / WEIGHT
Length: 19.0” (483mm)
Width: 15.3” (389mm)
Height: 3.5” (88.2mm)
Weight: 13.2 lbs. (6.0kg)

ELECTRICAL
AC 85-265V – 50/60Hz – 0.65A
Max Power Consumption: 30W

Specifications and documentation subject to change without notice.
