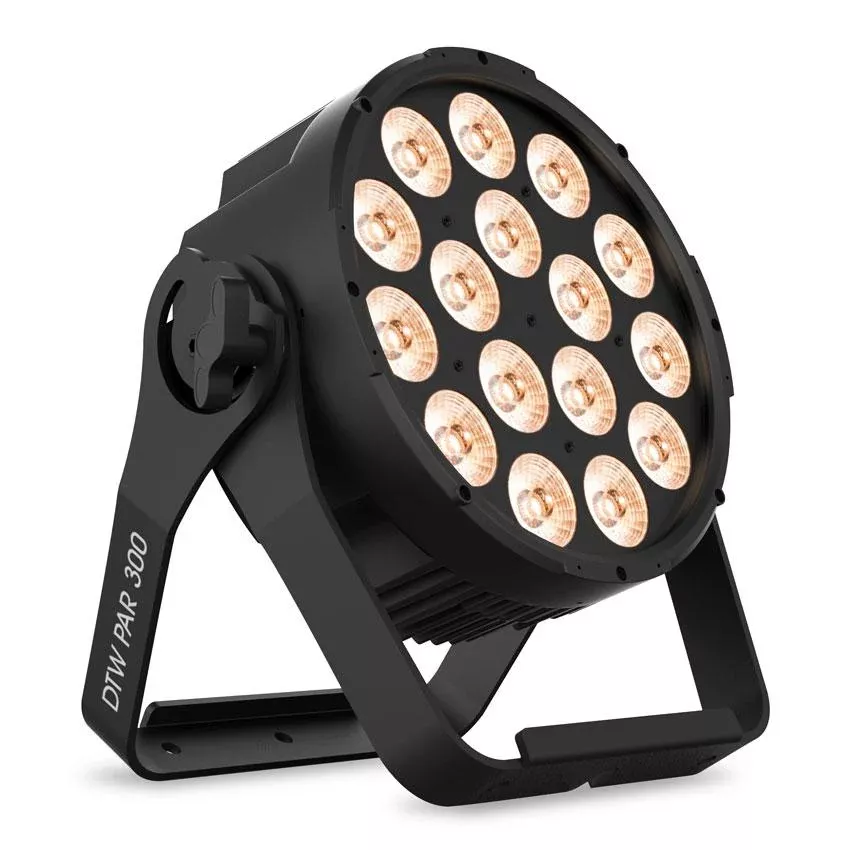

Elation Lighting DTW Par 300

The DTW PAR 300™ features (16) 10W multi-chip CW / WW / Amber LEDs, 23° beam angle, full color temperature range control from Tungsten to Daylight (2,700K – 6,500K) and a unique “Dim-to-Warm” function that allows dimming from Tungsten to Amber at zero to emulate the halogen lamp decay when dimming, variable dimming curve modes, strobe effects, RDM (remote device management) protocol support, 3pin and 5pin DMX and powerCON in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

Features

23° Beam Angle
Tungsten to Daylight (2,700K – 6,500K)
Unique Dim-to-Warm Channel Control (1,800K – 3,200K)
RDM – Remote Device Management
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM

Specifications

SOURCE
(16) 10W Multi-Chip CW / WW / Amber LEDs
50,000 Hour Average LED Life*

*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions,  Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
2,635 LUX 245 FC @9.8’ (3m) (23° Full ON)

COLOR
Tungsten to Daylight (2,700K – 6,500K)

EFFECTS
Electronic Strobe and Variable Dim Curves
Unique Dim-to-Warm Channel Control (1.800K – 3.200K)

CONTROL / CONNECTIONS
(7) DMX Channel Modes (8 Total Channels)
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
3pin and 5pin DMX and powerCON In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 14.4″ (365mm)
Width: 5.1″ (129mm)
Vertical Height: 14.7″ (373mm)
Weight: 19.0 lbs. (8.6 kg)

ELECTRICAL / THERMAL
AC 110-250V – 50/60Hz
170W Max Power Consumption
5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP20

OPTIONAL ACCESSORIES:

SIXPAR300/GFH – Gel Frame Holder Kit

SIXPAR/BD300 – Barn Door
NOTE: Gel Frame Holder Kit required to attach Barn Door.
(Sold separately)

Specifications and documentation subject to change without notice.
