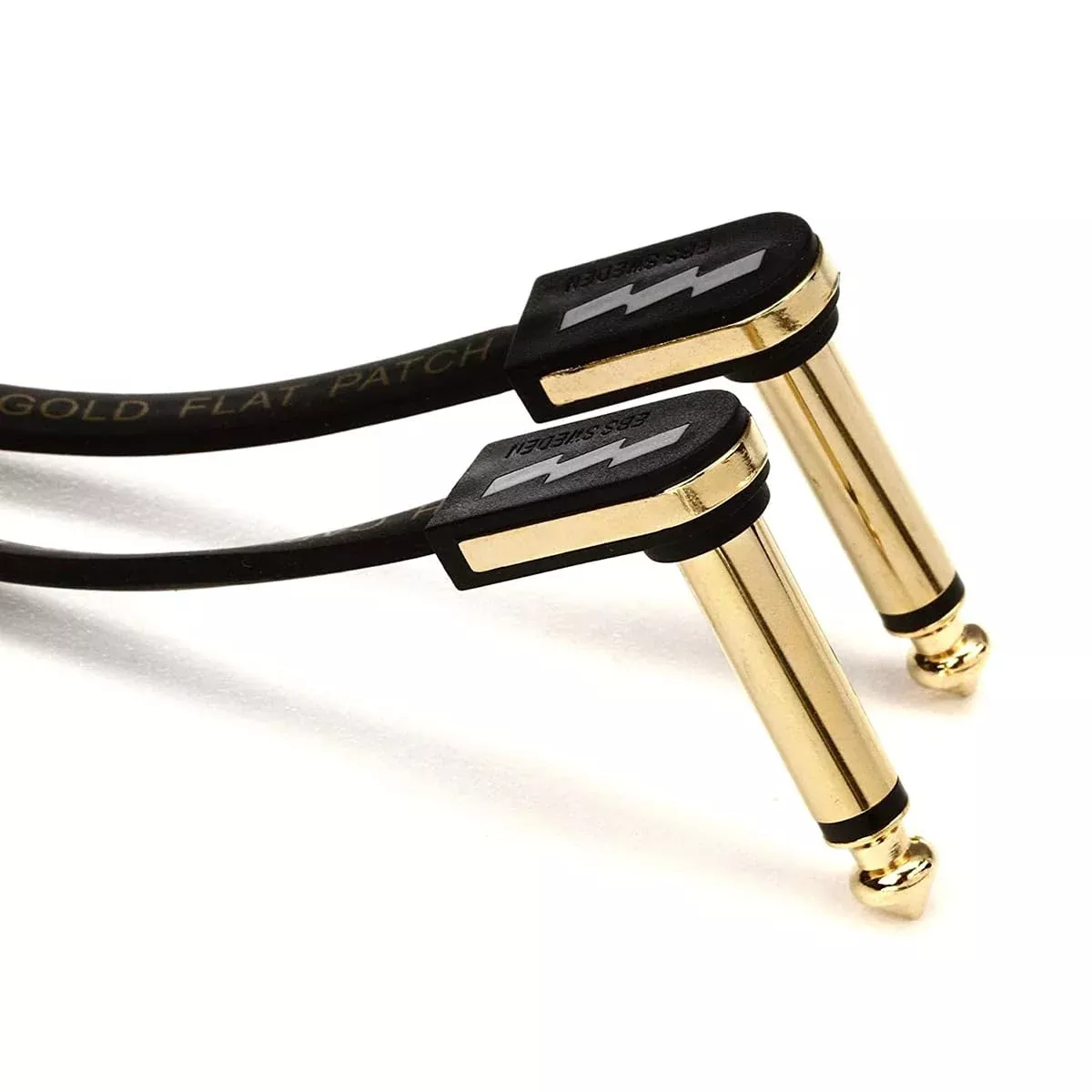

EBS PG-18 Premium Gold Flat Patch Cable, 18cm
If you haveever struggled with limited space on your pedalboard, we share the pain withyou. To end the frustration we’ve designed the truly unique, super compact andaffordable EBS Flat Patch Cables. Cablesthat won’t let you down on sound and flexibility, and at the same time reducethe space needed between pedals to a minimum. The elegant Premium Gold (PG)series are the most compact and features 24K Gold plated contacts with evensmaller housing than the original EBS PCF-Deluxe (PCF-D) cables.
Doubleshielded cables and very low resistance keep your signal path clean and strongall the way through the pedalboard.
Extremelycompact size and flexible cables ensure effective use of ALL space on yourpedalboard.
Available infour lengths to cover your needs; 10, 18, 28 and 58 cm.
Since theintroduction, these cables have made thousands of customers happy. We hope youwill become one of them too.* Buy the cables at local stores and online dealersall over the world. * Great customer reviews and very few reported failuresfrom hundreds of thousands sold cables so far.
Technical Specifications
Contact house
24 CaratGold Plated
Double Shield
ConductivePVC and Copper shield protect effectively from both LF and HF interferences.
Conductor
Flexiblecopper conductor low voltage audio signal system
Operating Temperature
-15C to+70C
Outer Insulation
PVC(Polyvinyl Chloride)
Signal Copper Cores
20 x 0,12mm
Signal Insulation
PE (polyethylene)
Twisted Copper shield
45 x 0,12mm
Capacitance Cond./Shield
<10pF/decimeters
Conductor Resistance
<10mOhm/decimeters
Dimensions
5,3 x 2,5 mm(rectangular cable), 22,0 x 11,5 x 5,0 mm (contact house)
