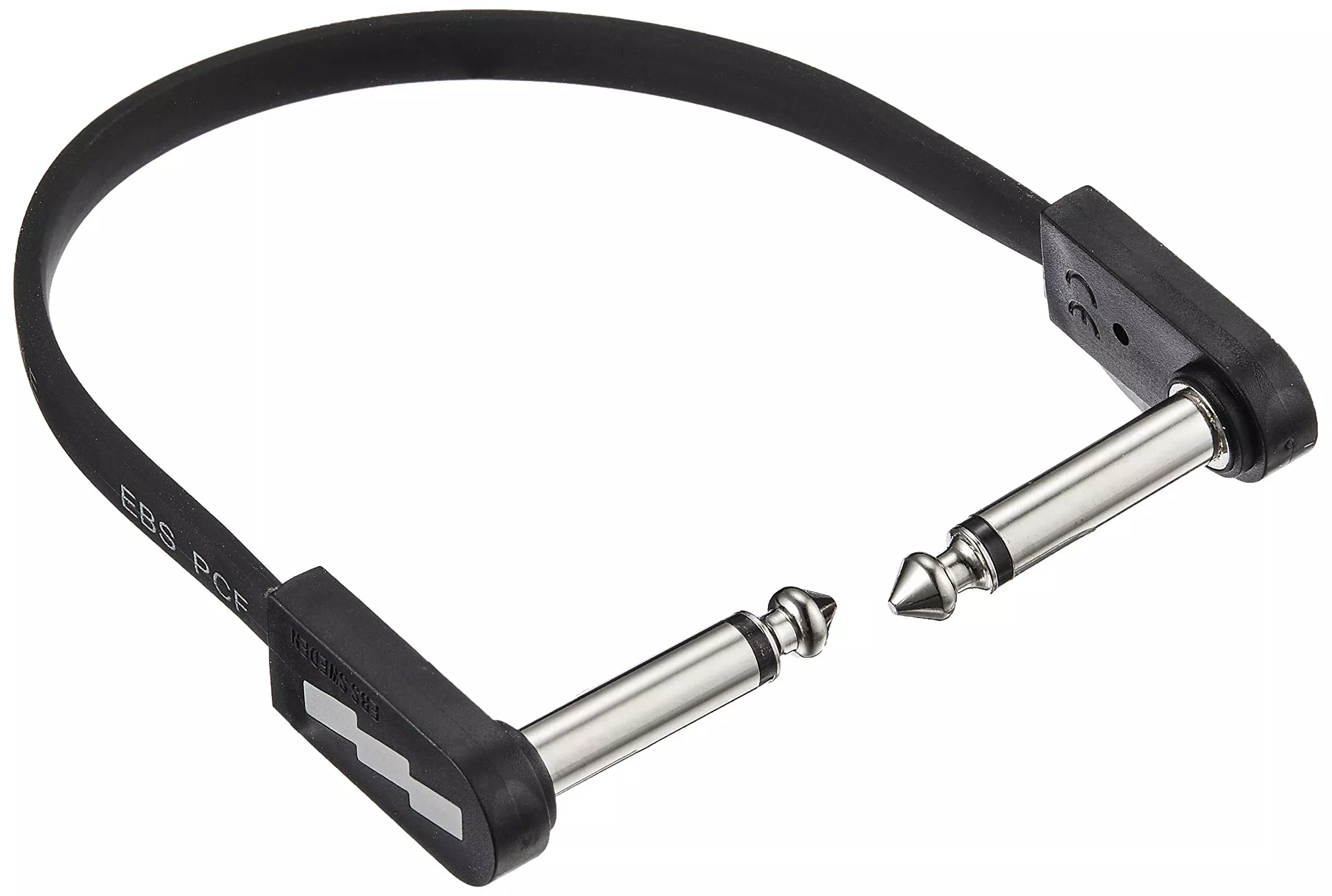

EBS PCF-DL18 Flat Patch Cable, 18cm
If you haveever struggled with limited space on your pedalboard, we share the pain withyou.
To end thefrustration we’ve designed the truly unique, super compact and affordable EBSFlat Patch Cables. Cables that won’t letyou down on sound and flexibility, and at the same time reduce the space neededbetween pedals to a minimum.
The PCFDeluxe (PCF-DL) series is the most affordable alternative and is an improvedversion of the original design.
Key Features
- Doubleshielded cables and very low resistance keep your signal path clean and strongall the way through the pedalboard.
- Very compactsize and flexible cables ensure effective use of ALL space on your pedalboard.
- Available infour lengths to cover your needs; 10, 18, 28 and 58 cm.
TechnicalSpecifications
Conductor
Flexiblecopper conductor low voltage audio signal system
Operating Temperature
-15-deg C to+70-deg C
Outer Insulation
PVC(Polyvinyl Chloride)
Signal Copper Cores
20 x 0,12mm
Signal Insulation
PE(polyethylene)
Copper Twisted Shield
38 x 0,12mm
Capacitance Cond./Shield
<10pF/decimeters
Conductor Resistance
<10mOhm/decimeters
Dimensions
6 x 3 mm(rectangular cable) 30,0 x 13,0 x 6,0 mm (contact house)
Connectors
1/4” 90degrees angled audio plug
