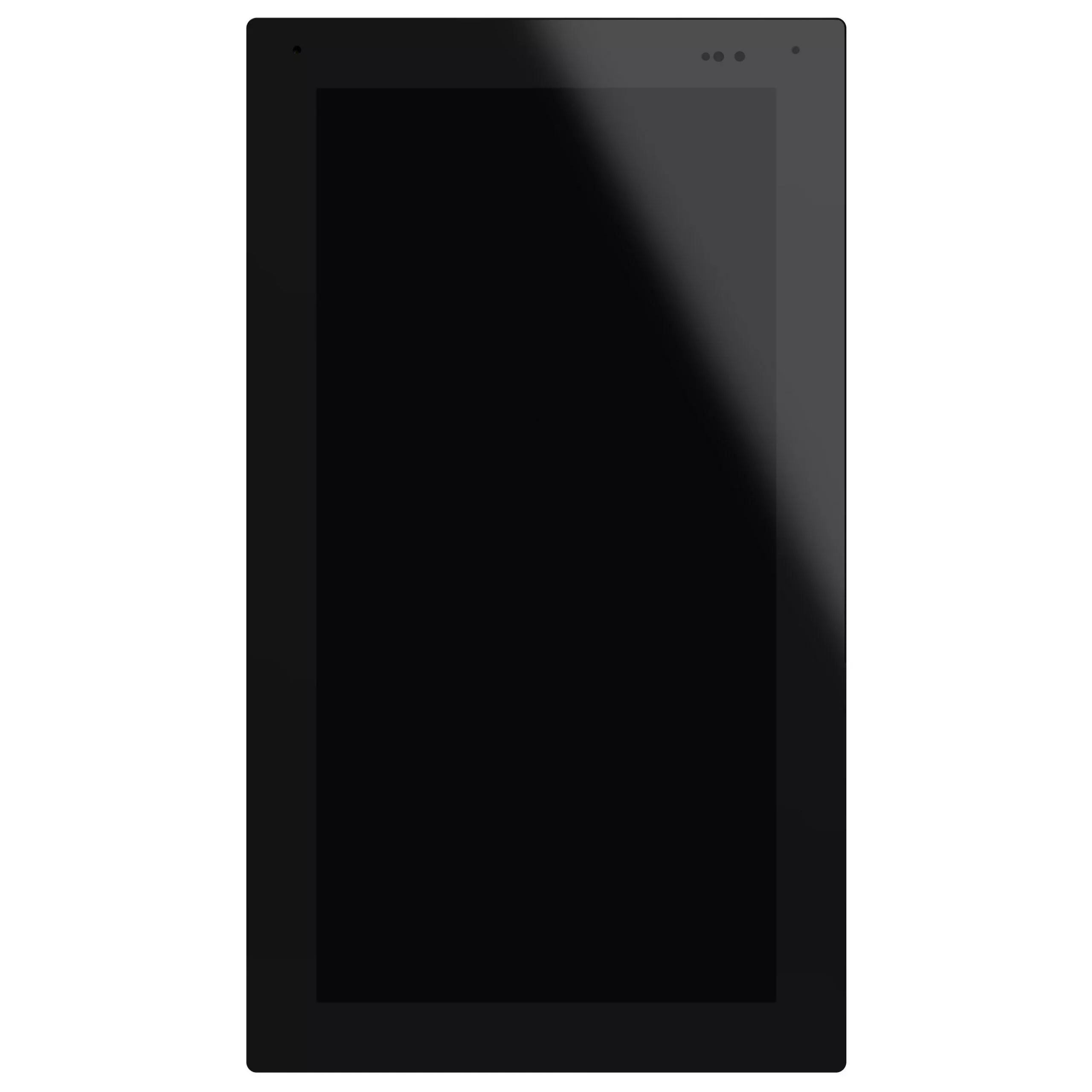

Dynacord TPC-1 5.7-Inch Touch Panel Controller
The TPC-1touch panel controller allows the system integrator to provide customized appsto control MXE series audio matrices. Featuring a high definition 5.7” display,the super slim in wall profile and universal mounting for EU, UK, or USmounting boxes with Power over Ethernet (PoE) makes it easy to install, even inshallow wall spaces. TPC-1 features theft protection by a secured mountingplate. The TPC-1 interface is freely configurable in SONICUE sound systemsoftware, allowing custom images and text in local languages to be added tocontrol elements.
The TPC-1interface is freely configurable in SONICUE sound system software (1.2 orhigher), allowing custom images and text in local languages to be added tocontrol elements.
Key Features
- Customizeduser control apps with SONICUE
- High Definition(720 x 1440) IPS 5.7″ display with 450 nits of brightness
- PoE,compatible with US single gang, EU and UK wall boxes
- Only 25.4 mm(1 inch) installation depth in wall
TechnicalSpecifications
Display
IPS5.7″
Resolution
720 x 1440px
Color
16.7 million
Brightness
450 nits
Processor
NXP iMX8,64-bit Armv8-A, quad symmetric-core ARM Cortex-A53 processor @ 1.8 Ghz
Proximity sensor (max. range)
120 cm
Proximity sensor (capture range)
25horizontal, 25 vertical
Wired network
IEEE1588Gigabit Ethernet
Power over Ethernet (POE)
IEEE PoE802.3af compliant via LAN port
Aux Power
+24 V DC(connector 5.5/2.5/12 mm), power supply not included
Power Consumption
Typical 6 W,Maximum 8 W
USB
USB 2.0 onthe rear for service
Installation
Wall-mount,US NEMA single gang, EU 65mm (IEC/EN 60670), UK BS 4662
Recommended cabling
CAT6
Operating conditions
0C to +45C, max. 95% humidity
Dimensions (W x H x D inside/outside wall)
85.5 x 150.3x 12.2 / 20.5 mm
