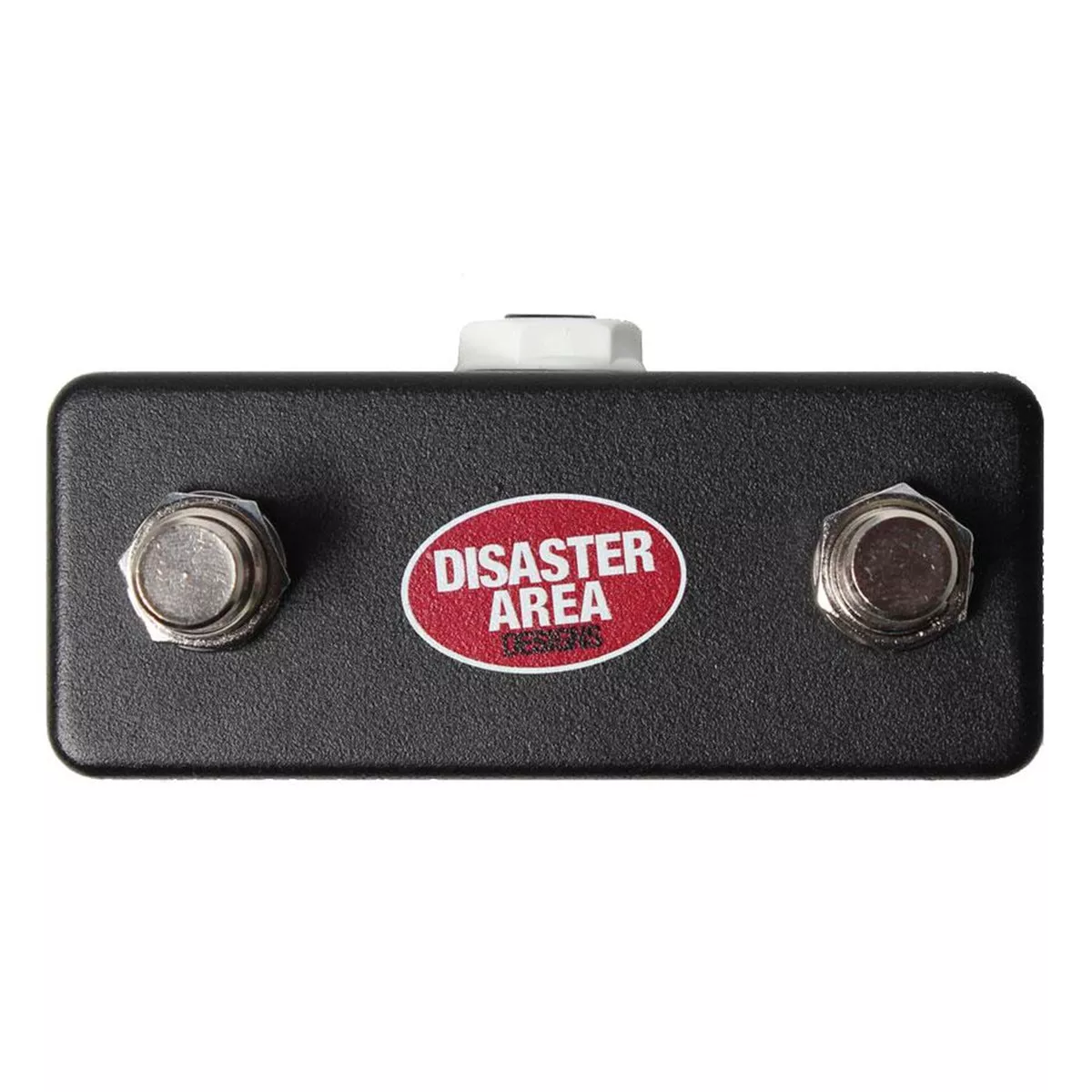

Two-button Expander Footswitch for use with the following controllers:
- DMC-6 Gen3
- DMC-8 Gen3
- DMC-6D (Gen2)
Connect the PBA-EXP Expander Switch to the Gen2 Footswitch jack (red) or the Gen3 MultiJack 2 (white) to access additional functionality.
The DMC-6 Gen3 and DMC-8 Gen3 controllers may access the following functions by changing the options in the Setup Mode:
- 2TAPTap Tempo + Favorite function
- 2LPRLooper Record / Overdub + Play / Stop functions
- 2BNKBank up + Bank down functions
The DMC-6D (Gen2) controller may access Tap Tempo + Favorite functions.
The PBA-EXP may also function as a two-button footswitch to control other devices. Each switch is normally-closed momentary, wired to the TIP and RING of the 1/4 jack.
The PBA-EXP includes an 18 / 450cm TRS cable with right-angle ends.
