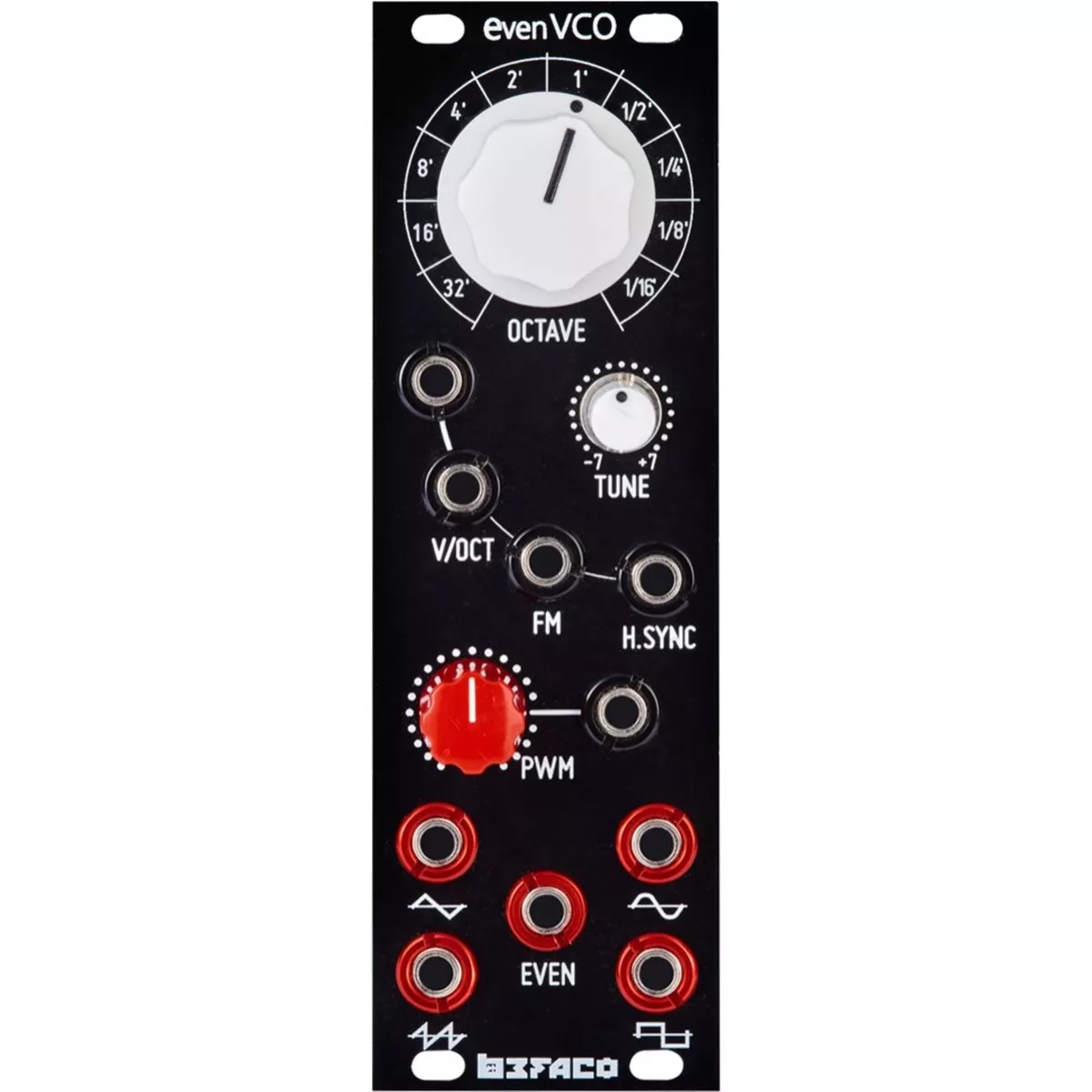

DIY kit version of ourEvenVCOEurorack module.
The kit includes all the necessary parts to make a completed module including power cable and fourof ourbespokeKnurliesM3rack screws.
In order tofacilitate easyassembly all our kits come with hex nuts and not with round nutsseen on ourassembled modules.
FEATURES:
The EVEN VCO features a 10 position octave selector switch (C0 – C9) and is able to track with 1 cent precision between C07, 4 cents through C8 and 13 cents through C9.
Outputs:
- Triangle
- Ramp
- PWM
- Sine
- Even (waveshape with emphasis on even harmonics)
Inputs:
- Hard sync. This forces the core to down in the event of change to zero of the input
- V/oct. Two inputs for pitch control summed to the main octave selector and the tone control.
- FM. Linear pitch control.
- PWM CV. Pulse width control summed to the potentiometer.
