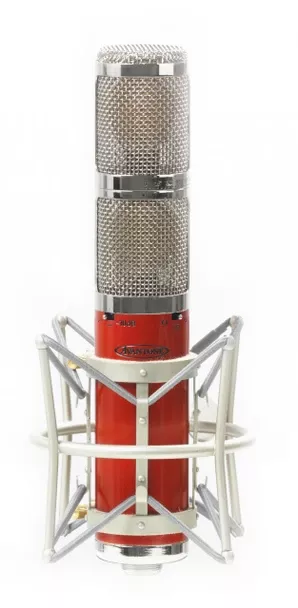

The rugged CK-40 microphone body and capsule assembly are precision machined of BRASS. Aesthetically, it features an elegant Cabernet Wine-Red finish, accented with polished nickel trim and grill. The Discreet Class A Low-Noise FET circuitry will yield pleasing professional results comparable to much more expensive designs.
Manufactured using the finest materials yielding a very solid feel, superb structural integrity and rugged reliability. The versatile Avantone CK-40 Stereo Class A FET microphone features twin LARGE 35mm center-terminated pressure gradient transducers. Their close physical proximity places them in a tight vertical array to allow accurate stereo imaging without phase issues arising. The top capsule/grill assembly rotates UP TO 180 degrees relative to the lower capsule/grill assembly. This feature along with the multi-pattern independent selector choices allow for all stereo recording techniques to be utilized. (XY-Coincident / Blumlein, M-S)
The 2 sets of pad, pattern select & LF rolloff switches independently control the capsules. (Front switches control the lower fixed grill/capsule while the rear switches control the upper rotating headgrill.) The 3 patterns allow the CK-40 to be used in a variety of situations including M-S recording.
The -10dB attenuation switch can be engaged when miking very high SPL sources to keep from overloading the electronics.
The 80Hz HIGH-PASS filter switch can be engaged to reduce rumble and to keep unwanted low frequencies from “muddying up” the track. The CK-40 operates on standard 48 volt phantom power and includes a 5-Pin mic cable that plugs into the included 1×2 stereo splitter box. Two standard XLR mic cables are then all that is required to connect to a phantom powered mic preamp/console channel.
The included Custom Retro Shockmount is superb in allowing a precise positioning of the mic while inhibiting the transfer of unwanted vibrations up into the mic. This isolation allows for superior professional results
Standard Included Items
- Avantone CK-40 Stereo FET Microphone
- Avantone Custom Retro Shockmount W/ Extra Elastic bands
- 1 x 2 Splitter Box (Stereo Breakout Box)
- Elegant padded genuine wooden Mic box
- 30′ 5-pin cable
- Foam wind filter
- Padded Aluminum storage / travel case
- Owner’s Manual
