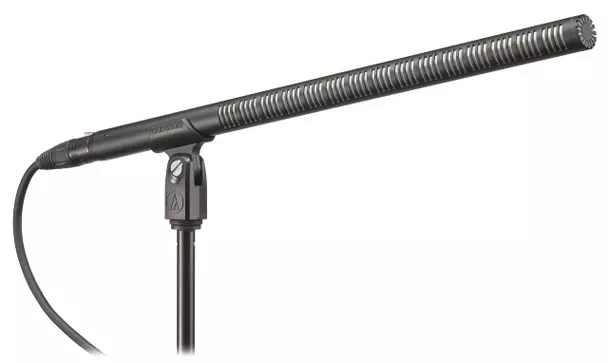

The BP4071 is an externally polarized (DC bias) condenser microphone with a line + gradient polar pattern. It is designed for use in professional recording, broadcasting, film/TV/video production, wildlife recording, high-quality sound reinforcement and other demanding applications. The microphone requires 48V phantom power for operation. The microphone’s highly directional polar pattern provides a narrow acceptance angle along with crisp, intelligible audio reproduction desirable for long-distance sound pickup.
The output of the microphone is a 3-pin XLRM-type connector. The microphone is equipped with a switchable 10 dB pad and a switch that permits choice of flat response or low-frequency roll-off (via integral 80 Hz high-pass filter). The microphone is enclosed in a rugged aluminum alloy housing. The included AT8405a stand clamp permits mounting on any microphone stand with 5/8″-27 threads. A windscreen, two o-rings and a protective carrying case are also included.
Features
- Designed for critical long-distance pickup in broadcasting, film/ TV production and theater sound reinforcement applications
- Innovative acoustic design provides the same directivity as mics up to 50% longer
- Direct-coupled, balanced output ensures a clean signal even in high-output conditions
- Transformerless design for improved pickup of transients
- Rugged housing made of lightweight structural-grade aluminum alloy
- Integral 80 Hz high-pass filter switch and 10 dB pad switch
