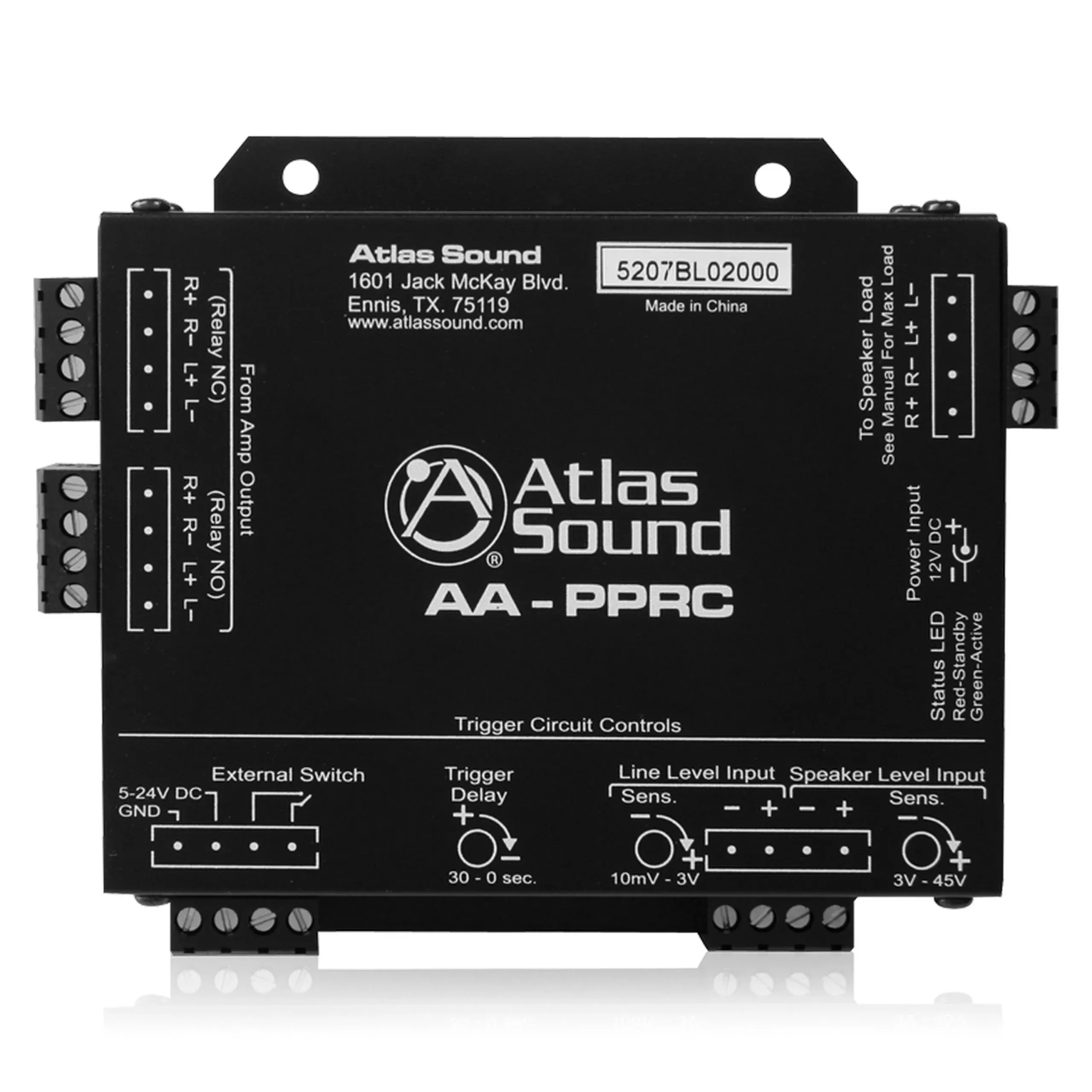

Atlas Sound AA-PPRC Priority Paging Remote Controller
The AtlasIEDPriority Pager Relay Controller is a two input by two output speaker levelrelay switcher. The AA-PPRC is designed to be placed between an amplifier’soutput and the speaker load. It can be used with 25V, 70.7V, 100V or lowimpedance systems. Each channel can handle up to 350 watts. Placement of therelay controller is not critical because the systems switching can be triggeredfrom a variety of sources. Both High Level and Line Level signals can triggerthe relay control circuit as well as a wide range of DC voltages.
Key Features
- 12VDC ULPower Supply (Included)
- 2 Channel
- 350 W @70.7V Per Channel
- Audio HighLevel Trigger Sense with Threshold Adjust 3V – 45V
- Audio LineLevel Trigger Sense with Threshold Adjust 20mV – 2V
- Compact SizeH 1.5″x W 4″ x L 4.5″ (H 38.1 mm x W 101.6 mm x L 114.3 mm)
- ContactClosure Trigger
- DC Trigger5V – 24V
- Finish Blackwith White Lettering
- Phoenix TypeI/O Connectors
- RelayRecover Adjustment 1 – 30 Seconds
- RelayTrigger Threshold Adjust
- Speaker LineRemote Switcher
TechnicalSpecifications
Height
1 1/2″(3.81 cm)
Width
4″(10.16 cm)
Depth
4 1/2″(11.43 cm)
Shipping Weight
2.00 lbs(0.91 kgs)
Frequency Response
20Hz – 20kHzFlat
Connector Type
FourPosition Detachable Phoenix Connector
Finish
Black
Load Capacity
5 AMPS
Compatible With
8, 25V,70.7V, 100V Systems
