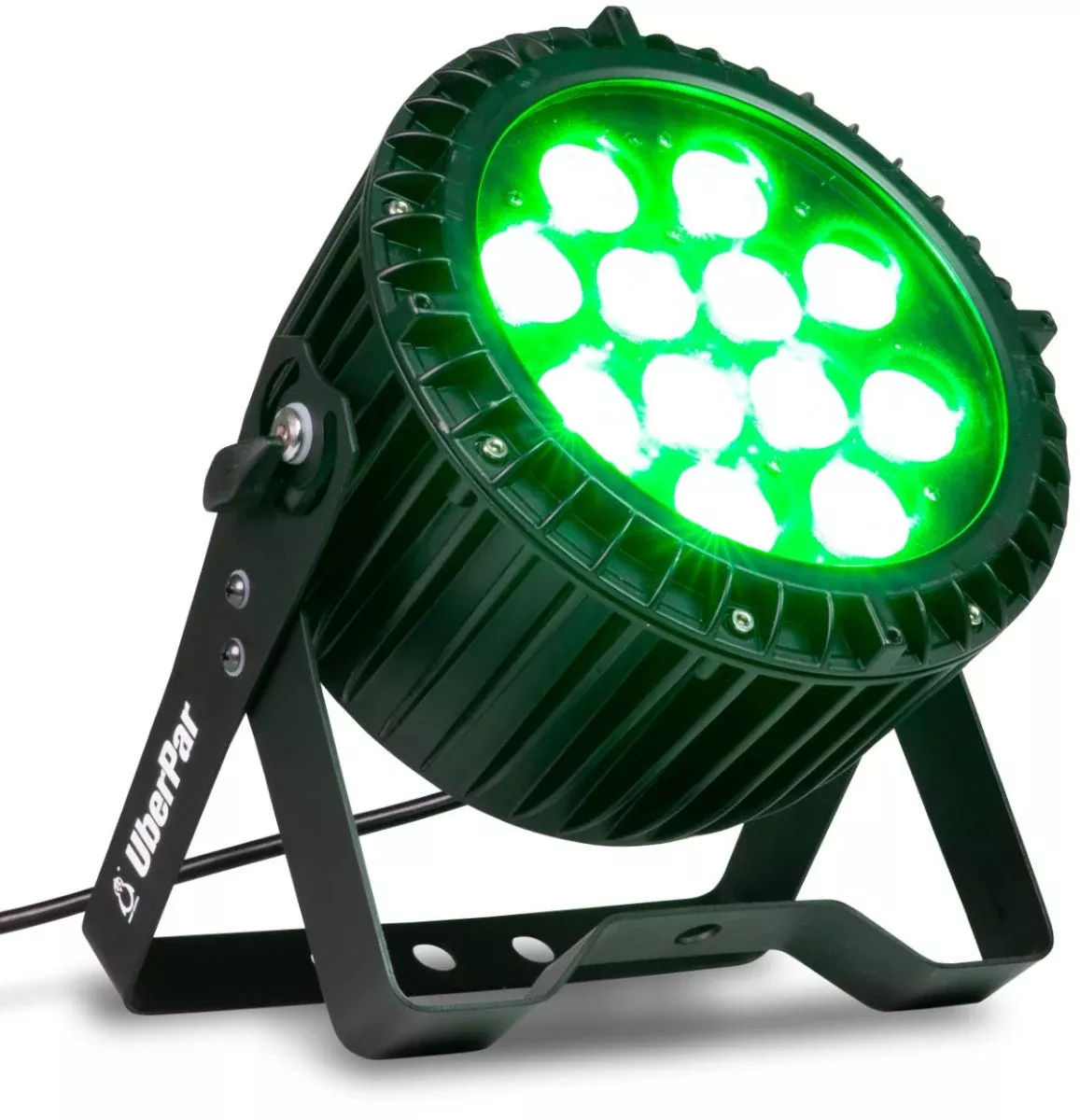

APE LABS UberPar

KEY FACTS
Light source: 12x 18W RGBAW+UV (Hex) Color LEDs
Beam angle: 25°
Control: DMX-512, Sound Active, Auto Program, Presets, Remote Control
Gel Frame & Barn Doors available
Photometric Data: 13,700 Lux @ 1m / 3,635 Lux @ 2m

COMPETITIVE DIFFERENCES
Built to CE & UL Specs
“No Fan” Technology for Ultra Low Noise and Less Moving Parts
TFT Digital Display in Plain English
IR Remote (included free)
3-Year USA Warranty

The Prost Lighting Uber Par is an ultra-powerful, universal LED wash par for events, DJs, catering, and architectural applications (check out the UberPar IP for outdoor version). Sporting a total LED output of 216 Watts, this spotlight is the brightest in its class. 12x 18 Watt Hex Color LEDs is a lot of light! But don’t worry, you can always dim it down if necessary.

The UberPar was engineered and designed in Germany to UL and CE certification specs.

These can be controlled thru standard DMX-512 or programmed directly on the unit to stand-alone, sound active, or auto program. The integrated RGBAW+UV LEDs offer advanced color mixing, as well as all the standard colors, pure white (6500K), amber (gold tone), and ultraviolet (black light).

FEATURES
12x 18W RGBAW+UV (Hex) Color LEDs
White Temperature: 6500 K.
Beam Angle: 25 degree
TFT Digital Display in Plain English
Stand Alone / Auto Mode Programs
Sound Active Mode
Built-in: Preset Macro Colors
4 DMX Channel Modes: 3, 6, 8, 11
Dimmer Mode: 16 Bit
4 Dimming Curves
PWM: 16 Bit, PWM @ 5200 Hz, flicker-free
DMX Protocol: DMX-512
Tough Aluminum Housing
Seetronic branded PowerCon Cable
Built-in: IR Remote Control Receiver (remote included)
No Fan – Quiet!
CE, RoHs

SPECIFICATIONS
Light source: 12x 18 Watt TyanShine LEDs
Colour spectrum: RGBAW+UV
Optical lens: 25°
DMX mode: 3/6/8/11 CH
Control Mode: DMX-512, IR Remote, Master/Slave, Standalone, Sound Active
Dimming curves: Linear, Curve, Theatre, Studio
Dimming resolution: 16-bit of 65536 Grades
Refresh rate: 25,000Hz PWM Frequency
Strobe: 0-20 Hz
Housing material: Aluminum Die-casting
Display: Digital TFT
Cooling: Fanless / Noiseless with highly efficient convection cooling
Protection: Temperature Protection
Security: Menu Lock
Power cord: Rated for 16 Amps
Frequency: 50/60 Hz
Voltage: 100-240V
Max Power Consumption: 144 Watts
Luminous flux: 6480 lumens

Photometric Data: 13,700 Lux @ 1m / 3,635 Lux @ 2m
LUX Rating Breakdown:
All On – 13,700 Lux @ 1m / 3,635 Lux @ 2m
Red – 2,280 @1m / 610 @2m
Green – 2,770 @1m / 760 @2m
Blue – 3,250 @1m / 860 @2m
White: 3,650 @1m / 960 @2m
Amber: 1,400 @1m / 380 @2m
UV: 640 @1m / 170 @2m

Wavelength:
Red: 620-625 nm
Green: 525-530 nm
Blue: 460-465 nm
Amber: 590-594 nm
UV: 398-403 nm

White Color Temperature:
6500-7000 K

PWM Rate:
5200Hz

Voltage Input: 100-240V AC, 50/60Hz
3 Pin XLR DMX in/out

INCLUDED ACCESSORIES
PowerCon AC cable
Double Bracket Yoke
IR Remote Control

GERMAN-ENGLISH TRANSLATION
Uber Par: The German word “Uber” means “Above”.  And “Par”, well, that can be taken two ways. We’re confident that you’ll find this Par Can, “Above Par”.
