LPU

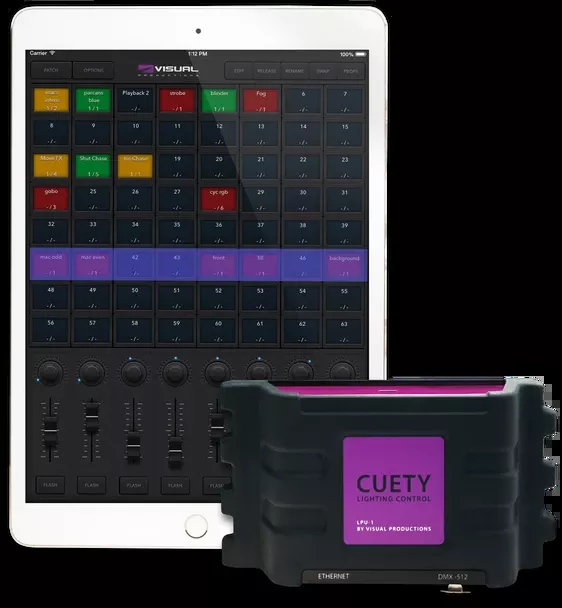

The Cuety app requires the Cuety LPU. This device is connected via ethernet and offers an optically isolated DMX-512 port.
Architecture
The system architecture of the Cuety and LPU is designed for robustness. The powerful LPU contains the engine that runs your show, calculates fade times and renders dynamic FXs. The Cuety app is your user-interface. In the case of a WIFI interruption your show will go on.
LPU-1 vs LPU-2
There are two versions of the LPU available. The LPU-1 is designed for entertainment lighting and is very affordable. The LPU-2 is designed for fixed installations and offers extra protocols like OSC, UDP, TCP and HTTP. These protocols enable you to connect the LPU-2 to wide range of 3rd party control systems and show controllers, as well as apps like Kiosc.
LPU-1 |
LPU-2 |
|
| Market | Entertainment | Installation |
| DMX Channels | 512 | 512 |
| Fixtures | 64 | 64 |
| Playbacks | 64 | 64 |
| Cues per Playback | 48 | 48 |
| FX Generator | Yes | Yes |
| Personality Files | 4500+ | 4500+ |
| HTTP | No | Yes |
| TCP | No | Yes |
| UDP | No | Yes |
| OSC | No | Yes |
